Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM550SW |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 55 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 300 Cd/m² Max 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Windows Versions: | 10; 11 | CPU: | Intel I5-4310M; Intel I5-6100T |
| RAM+ROM (GB): | 4+128; 8+256 |
55-inch Embedded All-in-One Machine: The Best Choice for Embedded Windows All-in-One Machines
In the pursuit of efficiency, multifunctionality, and aesthetics in modern office and commercial environments, the 55-inch Embedded All-in-One Machine, with its large screen and high-definition display, is becoming a key tool for enhancing space utilization and visual experience.
The 55-inch Embedded all-in-one machine features a high-definition LCD touchscreen, providing a clear and vivid visual experience. This large screen size is suitable for conference rooms, reception areas, and exhibition halls, making information display and interaction more eye-catching.
It can integrate the Windows operating system, supporting various office and business software, including document editing, video conferencing, and presentation playback. With simple touch operations, users can easily perform daily tasks and presentations, greatly enhancing office efficiency.
| LCD Panel Parameters | Screen Size | 55 Inch | ||
| Display Area | 1209.6 mm.(Height) X 680.4 (Width)mm. | |||
| Aspect Ratio | 16 : 9 | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 | ||
| Display Color | 16.7m , 72% NTSC | 1.06B, 74% NTSC | ||
| Brightness | 300cd/m² | 400cd/m² | ||
| Contrast Ratio | 1200 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) | ||
| Response Time | 8ms | 6ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Built-in Speaker | Power | 2 x 5W | ||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||

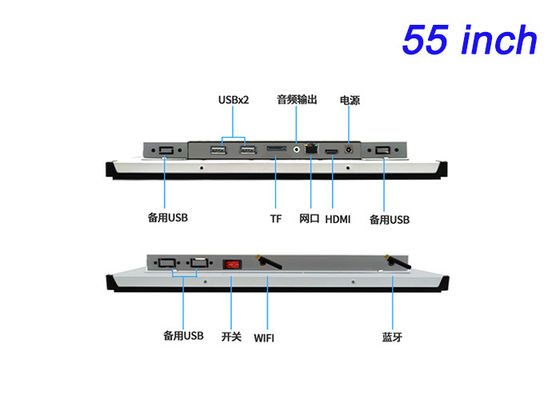

| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 90 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 1287 X 769 X 68.4 mm. | ||
| Net Weight | 32 Kilogram | |||
| Package Size | 137.8 X 20.0 X 89.4Centimeter | |||
| Gross Package Weight per Unit | 35 Kilogram | |||
The design of the 55-inch Embedded all-in-one machine takes into account the needs of modern office and commercial spaces, featuring a narrow bezel and fashionable appearance, allowing it to seamlessly blend into any indoor environment. Its Embedded installation not only saves space but also enhances the overall visual effect.
With the continuous advancement of information technology, the 55-inch Embedded all-in-one machine has become the best choice for applications across various industries. It not only enhances the visibility and interactivity of information but also improves overall space utilization and aesthetics. This advanced integrated device is a key element in modern office and commercial design, heralding a new trend in future work methods.
