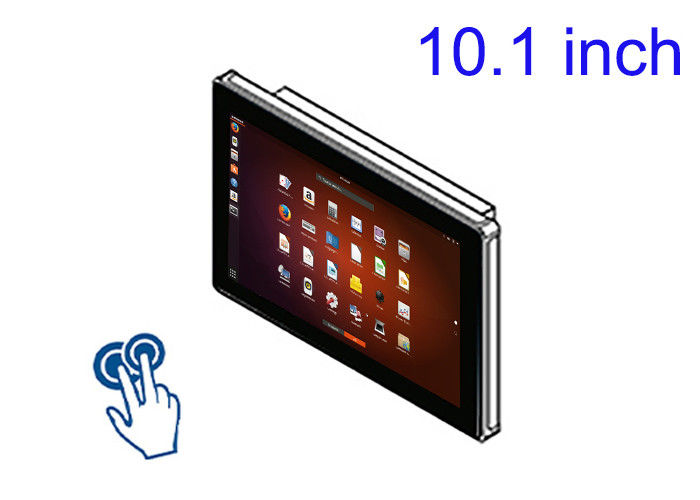

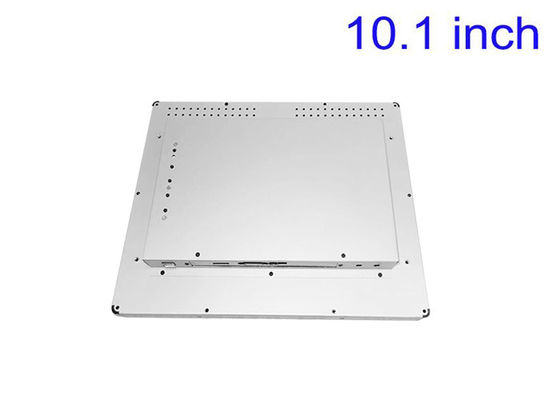

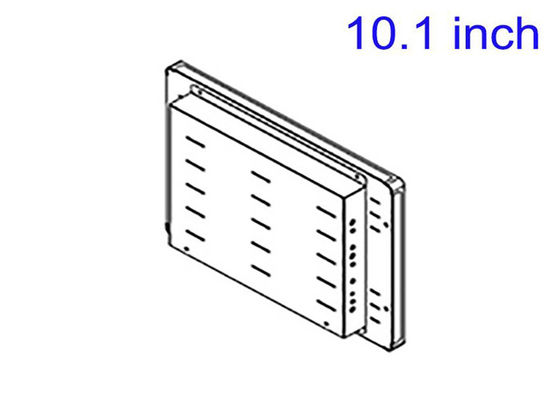

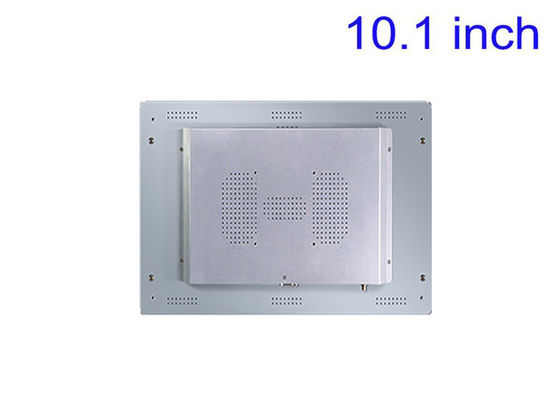

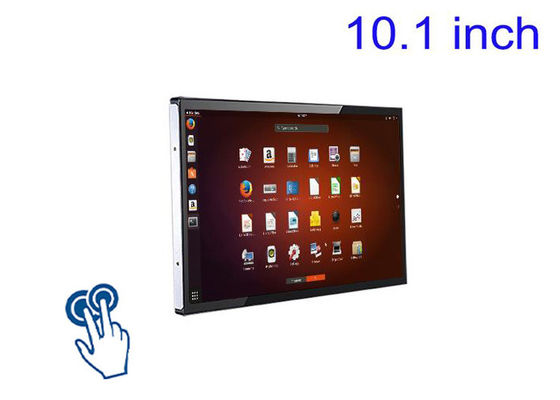

10.1-Inch Linux Touch Embedded Screen for Industrial Equipment, Smart Home Interfaces, Medical Devices, and Retail Systems

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-RM101SLT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight cases are optional
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	10.1 Inch	Aspect Ratio:	16：9
Brightness:	300 Cd/m² Max 400 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An
CPU:	Intel I5-4310M; Intel I5-6100T	RAM+ROM (GB):	4+128; 8+256

10.1-Inch Linux Touch Embedded Screen for Industrial Equipment, Smart Home Interfaces, Medical Devices, and Retail Systems

LCD Panel Parameters	Screen Size	10.1 Inch
	Display Area	217 mm.(Height) X 135.6(Width)mm.
	Aspect Ratio	16 : 9	16 : 10
	LCD Type	a-Si TFT-LCD Monitor	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 800	1920 X 1200
	Display Color	16.7M, 50% NTSC	16.2M , 50% NTSC
	Brightness	400cd/m²	1000cd/m²
	Contrast Ratio	900 : 1	1000 :1
	Viewing Angle (Up/Down/Left/Right)	85°/85°/85°/85° (Type)(CR≥10)	80°/80°/80°/80° (Type)(CR≥10)
	Response Time	30ms	30ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Capacitive Touchscreen Capacitive Projected
	Touch Points	10 Points
	Cover Glass	Physical toughened Morse magnitude 7 explosion-proof
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Internal computer configuration (Choose one of two)	CPU	Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz	Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
	Graphics Card	Integrated Graphics Card Intel® HD 4600	Integrated Graphics Card Intel® HD 530
	RAM	4GB	8GB
	Storage Memory Capacity	128GB	256GB
	OS	Linux	Linux
	Wi-Fi Built-in	Speed 150Mbps 802.11n wifi Integrated	Speed 150Mbps 802.11n wifi Integrated
Media Format	Video Format	wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
	Audio Format	MP3, WMA
	Photo Format	BMP, JPEG, PNG, GIF etc.
Onboard Interface	Network port	RJ45 X 1, 10M/100M Adjustable Ethernet
	HDMI	1
	USB	4
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 15 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
	Stereo Speaker Length	1.5m
Package Size	Device Dimensions	259.62 X 172.20 X 41.6 mm.
	Net Weight	2 Kilogram
	Package Size	31 X 23.3 X 11Centimeter
	Gross Package Weight per Unit	4 Kilogram
