Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM185SL |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 18.5 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| CPU: | Intel I5-4310M; Intel I5-6100T | RAM+ROM (GB): | 4+128; 8+256 |

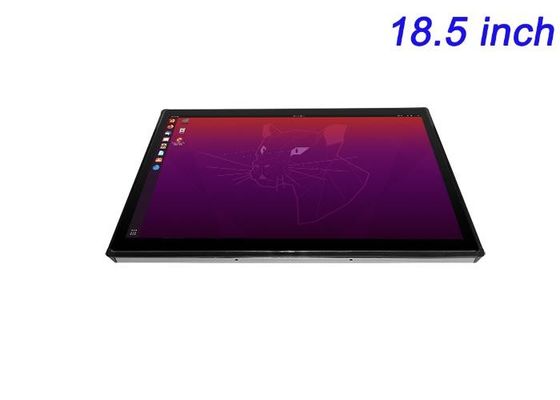

In today’s industrial and technological landscape, seamless integration and precise control are essential. The 18.5-inch Embedded Linux Monitor delivers exceptional performance, making it an ideal tool for Smart City Displays, Industrial Automation Systems, Command Centers, and Logistics Applications. With its high-definition 1920x1080 resolution and a wide viewing angle, this monitor offers crystal-clear visuals and reliable performance, ensuring clear and accurate data visualization in demanding environments. The vibrant color reproduction and sturdy build make it suitable for continuous operation in industrial settings.
| LCD Panel Parameters | Screen Size | 18.5 Inch | ||
| Display Area | 411.3 mm.(Height) X 231.4(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7m , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 1200 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 14ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Linux | Linux | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 460 X 280 X 50.7mm | ||
| Net Weight | 6.5 Kilogram | |||
| Package Size | 51 X 33.5 X 11Centimeter | |||
| Gross Package Weight per Unit | 7 Kilogram | |||
The monitor’s powerful specifications, including an Intel i5 processor and up to 8GB RAM, enable efficient handling of complex data and multitasking applications. Integrated with Linux OS, this device provides a stable, secure, and flexible platform for various industrial use cases. Its compact design, combined with user-friendly connectivity options like HDMI, USB, and Ethernet, allows for seamless integration into existing systems, ensuring smooth functionality across operations. The built-in Wi-Fi ensures easy network connectivity, further enhancing the monitor’s versatility for remote monitoring or data collection tasks.
Built to withstand the toughest conditions, the 18.5-inch Embedded Linux Monitor offers superior durability with a long lifespan of up to 60,000 hours, making it perfect for 24/7 use. Whether you’re managing smart city data or overseeing complex industrial systems, this monitor delivers exceptional reliability and performance. Its energy-efficient design, with a maximum power consumption of only 30W, helps reduce operating costs, while its robust audio system and versatile media format support further enhance its utility in dynamic environments.
