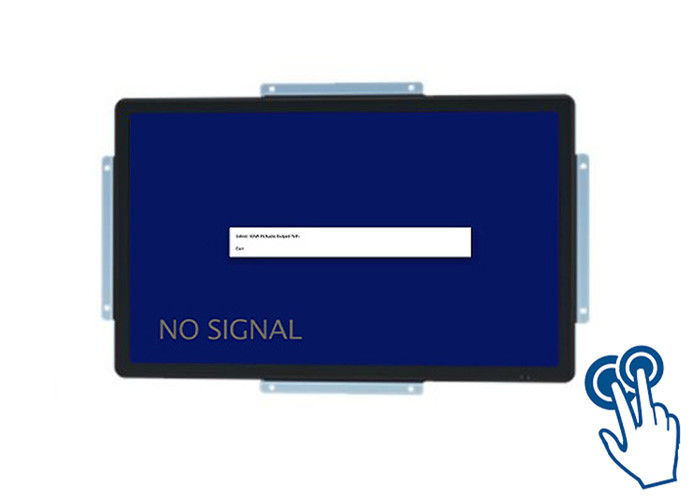

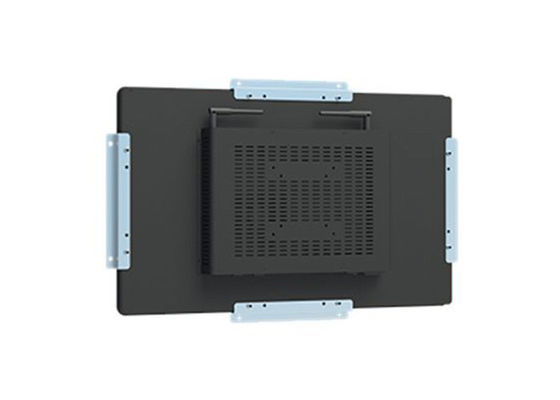

23.6-Inch Embedded Imaging Solution for Traffic Management Displays, Security Monitoring Systems, Facility Interfaces, and Energy Systems

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-E236BCT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight cases are optional
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	23.6 Inch	Aspect Ratio:	16:9
Brightness:	250 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

23.6-Inch Embedded Imaging Solution for Traffic Management Displays, Security Monitoring Systems, Facility Interfaces, and Energy Systems

LCD Panel Parameters	Screen Size	23.6 Inch
	Display Area	522 mm.(Height) X 294(Width)mm.
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1920 X 1080
	Display Color	16.7m , 72% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1000 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Projected Capacitive Touchscreen Monitor
	Touch Points	10 Points
	Cover Glass	Morse Glass Size 7 Physically reinforced to prevent explosion
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters (External Speaker Option)	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Onboard Interface	HDMI Input	1
	VGA Input	1
	DVI Input	1
	USB Type B or any desired USB Type	1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 45 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Accessories	Power Cord Length	1.5m
	HDMI Cable Length	2m
	USB-A to USB-B Cable Length	1.5m
	Stereo Speaker Size with Connector	994520mm
	Stereo Speaker Length	1.5m
Package Size	Device Dimensions	564.4 X 340.4 X 55.7mm.
	Net Weight	8 Kilogram
	Package Size	54 X 42 X 15Centimeter
	Gross Package Weight per Unit	9 Kilogram
