Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E156BL |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| RAM+ROM: | 4+128GB; 8+256GB |

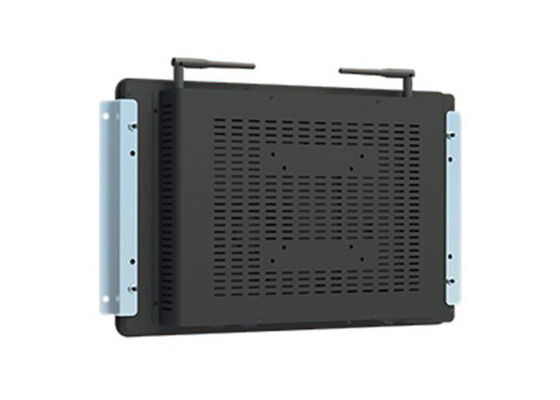

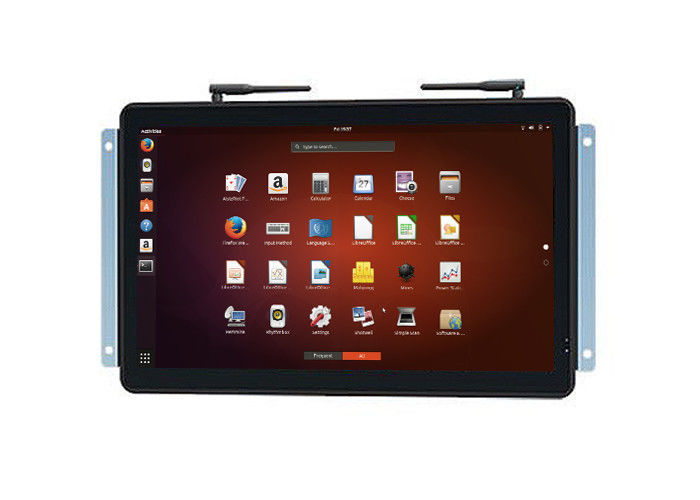

The 15.6-Inch Linux Vision System is an advanced display solution crafted for digital signage, security surveillance, industrial interfaces, and public service stations. With a high-resolution 1920x1080 full HD display, this monitor ensures crystal-clear images and vibrant visuals, essential for applications that require high-quality data presentation. Its wide viewing angle (89° in all directions) and 250cd/m² brightness make it perfect for diverse environments, including retail, security, and industrial settings, where clear visibility and precise monitoring are crucial.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.2 mm.(Height) X 193.5(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Linux | Linux | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 389 X 249X 51.7mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 44.2 X 30 X 10.5Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
Powered by Intel i5 processors, available in either 4th or 6th generation configurations, the system provides robust performance for continuous operations. With 4GB or 8GB RAM and a storage capacity of 128GB or 256GB, the system handles multitasking and data-heavy applications effortlessly. The integrated Linux OS ensures a stable and secure platform for running custom applications, while Wi-Fi connectivity and multiple ports (HDMI, USB, Ethernet) enable seamless integration with external devices and networks. Whether you're deploying it for public service, remote monitoring, or interactive signage, the monitor’s versatile connectivity supports both local and cloud-based applications.
Built for durability, the 15.6-inch Linux Vision System operates efficiently in a wide range of temperatures (0℃ ~ 50℃) and offers an impressive 60,000-hour lifespan, making it a reliable 24/7 solution. It’s energy-efficient, consuming only ≤30W of power, while its compact size (389 x 249 x 51.7mm) and sleek design ensure it fits effortlessly into tight spaces. With its robust audio capabilities and versatile media format support, this system is an excellent choice for a wide range of applications in dynamic and demanding environments.
