Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E101BP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 10.1 Inch | Aspect Ratio: | 16:9; 16:10 |
|---|---|---|---|
| Brightness: | 1000 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| RAM+ROM: | 4+128GB; 8+256GB | OS: | Win10 Or Win11 Optional |

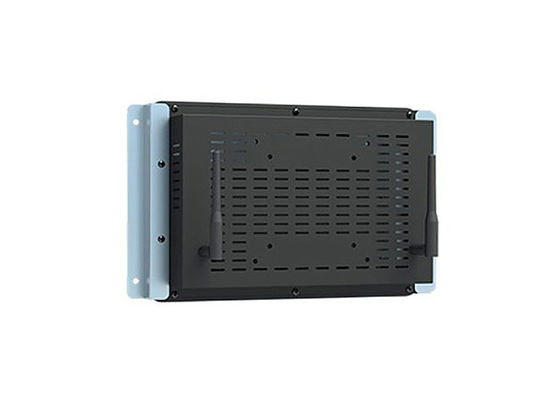

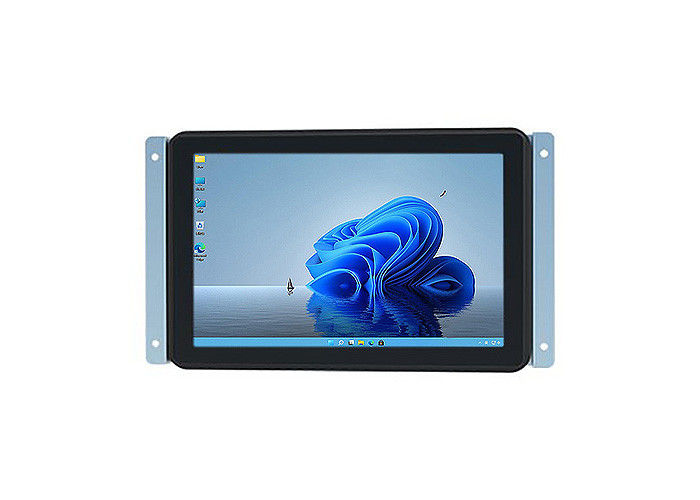

The 10.1-Inch Windows Embedded Terminal is a compact yet powerful solution designed for a wide range of industrial and commercial applications, including industrial control systems, medical diagnostics, retail dashboards, and smart warehouse management. Its maximum resolution of 1920 x 1200 ensures clear and detailed visual output, making it ideal for environments that require high-precision data presentation. The brightness of 1000cd/m² guarantees superior visibility even in well-lit spaces, ensuring the display remains sharp and readable in all conditions.
| LCD Panel Parameters | Screen Size | 10.1 Inch | ||
| Display Area | 217 mm.(Height) X 135.6(Width)mm. | |||
| Aspect Ratio | 16 : 9 | 16 : 10 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1280 X 800 | 1920 X 1200 | ||
| Display Color | 16.7M, 50% NTSC | 16.2M , 50% NTSC | ||
| Brightness | 400cd/m² | 1000cd/m² | ||
| Contrast Ratio | 900 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 85°/85°/85°/85° (Type)(CR≥10) | 80°/80°/80°/80° (Type)(CR≥10) | ||
| Response Time | 30ms | 30ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 15 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Stereo Speaker Length | 1.5m | |||
| Package Size | Device Dimensions | 259.62 X 177.62 X 41.6 mm. | ||
| Net Weight | 2 Kilogram | |||
| Package Size | 31 X 23.3 X 11Centimeter | |||
| Gross Package Weight per Unit | 4 Kilogram | |||
Equipped with an Intel i5 processor and supported by 4GB or 8GB of RAM, this terminal delivers fast and reliable performance for running complex applications. It also features 128GB or 256GB of storage, providing ample space for critical data, while the integrated Intel HD Graphics ensures smooth graphical performance. The Windows 10 or 11 operating system offers compatibility with a wide array of software tools, further enhancing its versatility across different use cases. Whether you're using it for medical applications, retail sales, or industrial automation, this terminal supports essential functions with ease.
Designed for harsh and fast-paced environments, the 10.1-Inch Windows Embedded Terminal provides seamless integration into any setup with its multiple connectivity options like USB ports, HDMI, and Ethernet. It operates efficiently within a temperature range of 0℃ to 50℃, ensuring reliable functionality even under demanding conditions. Additionally, the terminal’s low power consumption (≤ 15W) and lightweight design (2 kg) make it a cost-effective and durable solution for long-term use. Its flexibility, compact size, and robust performance make it an invaluable tool for improving operations in industries like manufacturing, healthcare, and retail.
