Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E133BP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 13.3 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 220 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| RAM+ROM: | 4+128GB; 8+256GB | OS: | Win10 Or Win11 Optional |

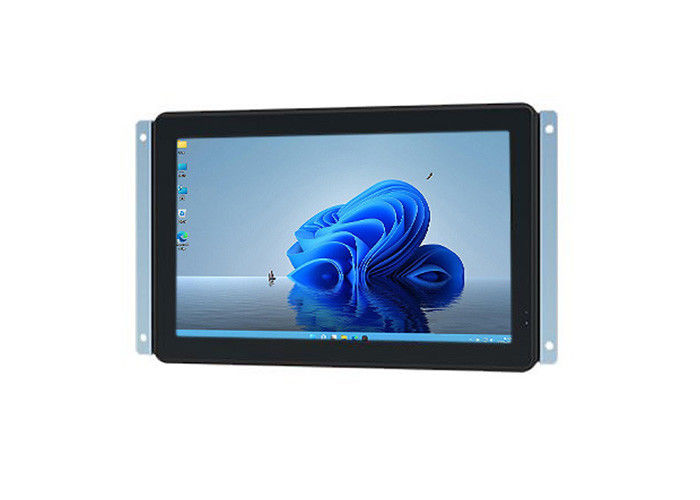

The 13.3-Inch Windows Industrial Display offers a robust and versatile solution for demanding applications in industries like logistics systems, security surveillance, energy monitoring, and corporate workspaces. With a maximum resolution of 1920 x 1080, this display ensures crystal-clear visuals, making it perfect for monitoring complex data, surveillance footage, and energy consumption metrics. Its 220cd/m² brightness and 800:1 contrast ratio allow it to perform reliably even in environments with varied lighting conditions.
| LCD Panel Parameters | Screen Size | 13.3 Inch | ||
| Display Area | 293.76 mm.(Height) X 165.24(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 262K, 45% NTSC | |||
| Brightness | 220cd/m² | |||
| Contrast Ratio | 800 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 85°/85°/85°/85° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 25 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 339.4 X 213.4 X 49mm. | ||
| Net Weight | 3 Kilogram | |||
| Package Size | 40 X 28 X 15Centimeter | |||
| Gross Package Weight per Unit | 4 Kilogram | |||
Powered by an Intel i5 processor, the display comes with options for 4GB or 8GB of RAM and 128GB or 256GB of storage, providing ample memory and storage to handle multitasking, high-resolution content, and various industrial software applications. The terminal also features integrated Intel HD Graphics for smooth performance in graphics-intensive tasks. With Windows 10 or 11 operating system options, it ensures compatibility with a wide range of business and industrial software tools, enhancing productivity and operational efficiency across different industries.
Designed for reliability and longevity, the 13.3-Inch Windows Industrial Display offers multiple connectivity options including USB ports, HDMI, and Ethernet, allowing for seamless integration into existing systems. It is built to operate within a temperature range of 0℃ to 50℃, making it suitable for a variety of industrial environments. Its low power consumption (≤ 25W) and lightweight design (3 kg) also make it an energy-efficient and cost-effective solution for continuous use. Whether used for monitoring security cameras, tracking energy consumption, or managing logistics, this display provides a high-performance, flexible, and durable tool to enhance your operations.
