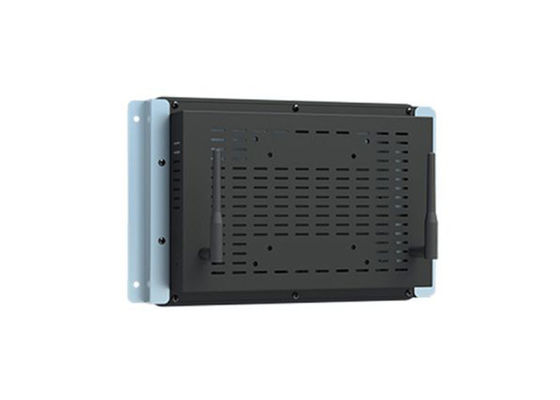

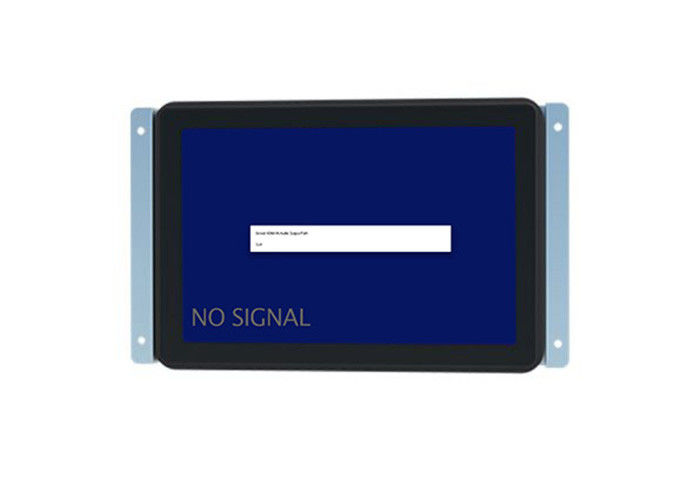

10.1-Inch Display for Industrial HMI Panels and Retail Signage

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-E101B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight cases are optional
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	10.1 Inch	Aspect Ratio:	16:9
Brightness:	400 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

10.1-Inch Display for Industrial HMI Panels and Retail Signage

LCD Panel Parameters	Screen Size	10.1 Inch
	Display Area	217 mm.(Height) X 135.6(Width)mm.
	Aspect Ratio	16 : 9	16 : 10
	LCD Type	a-Si TFT-LCD Monitor	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 800	1920 X 1200
	Display Color	16.7M, 50% NTSC	16.2M , 50% NTSC
	Brightness	400cd/m²	1000cd/m²
	Contrast Ratio	900 : 1	1000 :1
	Viewing Angle (Up/Down/Left/Right)	85°/85°/85°/85° (Type)(CR≥10)	80°/80°/80°/80° (Type)(CR≥10)
	Response Time	30ms	30ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
Audio Parameters (External Speaker Option)	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Onboard Interface	HDMI Input	1
	VGA Input	1
	DVI Input	1
	USB Type B or any desired USB Type	1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 15 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Accessories	Power Cord Length	1.5m
	HDMI Cable Length	2m
	USB-A to USB-B Cable Length	1.5m
	Stereo Speaker Size with Connector	994520mm
	Stereo Speaker Length	1.5m
Package Size	Device Dimensions	259.62 X 172.2 X 41.6 mm.
	Net Weight	2 Kilogram
	Package Size	31 X 23.3 X 11Centimeter
	Gross Package Weight per Unit	4 Kilogram
