Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E190BPWFS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 19 Inch | Aspect Ratio: | 4:3 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

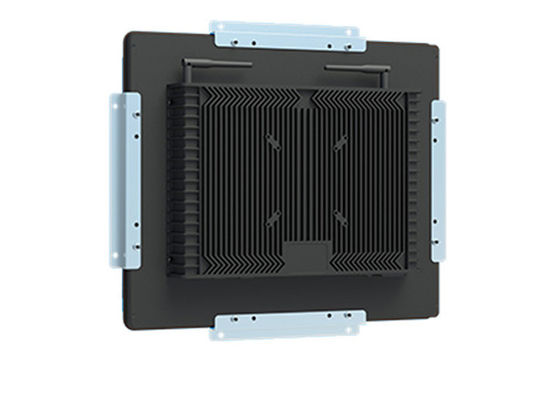

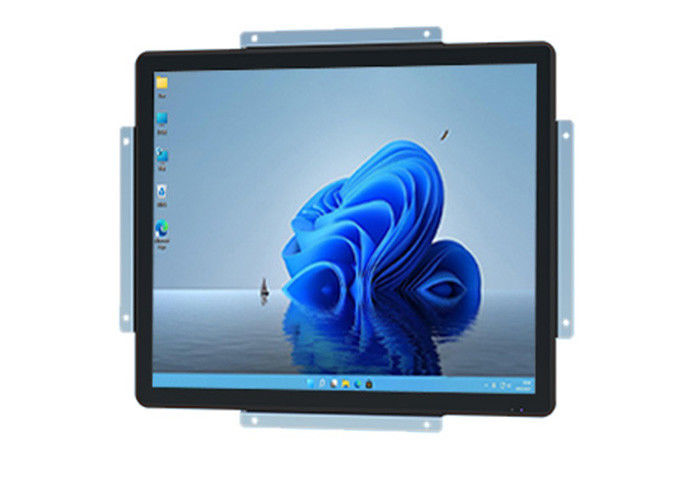

The 19-inch Windows display offers an ideal solution for transportation systems that require robust, high-quality visuals for a variety of operational tasks. Whether used for real-time train or bus schedules, ticketing kiosks, or passenger information systems, this screen delivers sharp visuals with its 1280 x 1024 resolution and high contrast ratio of 1000:1. This is essential for maintaining clarity in public spaces where environmental lighting can vary. The wide viewing angles ensure that passengers can easily read information, whether standing or sitting. Furthermore, the integrated Wi-Fi allows for seamless content updates, making it a reliable choice for digital signage that must be updated frequently with real-time information.
| LCD Panel Parameters | Screen Size | 19 Inch | ||
| Display Area | 376.32 mm.(Height) X 301.06(Width)mm. | |||
| Aspect Ratio | 4 : 3 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1280 X 1024 | |||
| Display Color | 16.7m , 73% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 1000 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 14ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 416 X 344 X 55.7mm. | ||
| Net Weight | 6.5 Kilogram | |||
| Package Size | 50 X 42 X 15Centimeter | |||
| Gross Package Weight per Unit | 7 Kilogram | |||
In access control panels, the 19-inch monitor provides secure and reliable visual interfaces for authentication systems like keycard access, biometric verification, and secure building entry. With its customizable display options, it supports a range of applications, from security monitoring to door control systems in corporate offices, airports, and data centers. The user-friendly interface, coupled with its compatibility with Windows-based software, makes it an excellent choice for smart building systems that require secure, interactive screens for user input, security alerts, and status updates.
In addition to security and transportation applications, this 19-inch screen is well-suited for integration into industrial automation systems. Whether it's used as a control panel for machinery, a monitor for real-time production data, or as part of asset tracking systems in warehouses and factories, the display ensures clear, easy-to-read data in demanding environments. The low power consumption and long lifespan of this screen make it perfect for systems that operate 24/7. Its enhanced graphics capabilities allow operators to monitor system performance and handle maintenance tasks with ease, making it a key component in ensuring smooth operations across industries such as logistics, manufacturing, and inventory management.
