Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E185BLWFS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 18.5 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

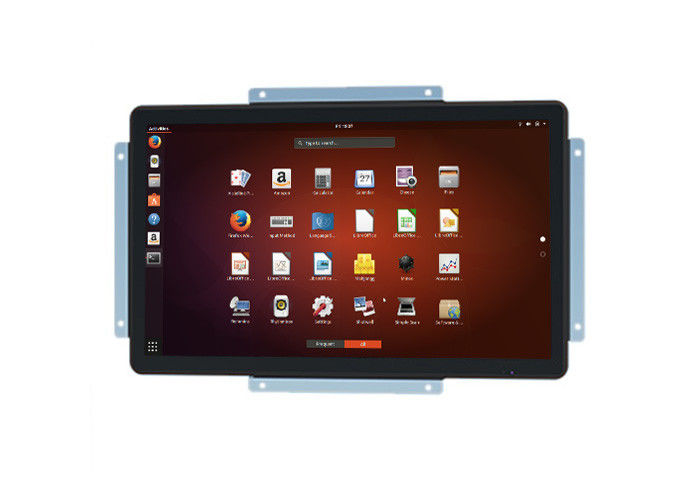

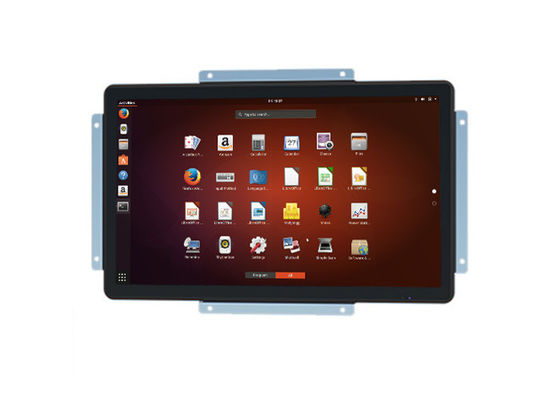

The 18.5-inch Linux display is an ideal choice for medical devices, offering a reliable and high-quality interface for displaying critical health data and patient information. With its 1920 x 1080 resolution and 72% NTSC color gamut, it provides clear and detailed visuals necessary for precise medical diagnostics and monitoring. This screen can be easily integrated into patient monitoring systems, ECG machines, and radiology equipment, delivering real-time updates with sharp contrast and brightness levels (250 cd/m²). Its 1200:1 contrast ratio ensures excellent clarity of both bright and dark details, making it suitable for environments where accurate and legible information is paramount.
| LCD Panel Parameters | Screen Size | 18.5 Inch | ||
| Display Area | 411.3 mm.(Height) X 231.4(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7m , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 1200 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 14ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Linux | Linux | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 460 X 280 X 50.7mm | ||
| Net Weight | 6.5 Kilogram | |||
| Package Size | 51 X 33.5 X 11Centimeter | |||
| Gross Package Weight per Unit | 7 Kilogram | |||
In addition to medical settings, this 18.5-inch screen excels in public terminals such as information kiosks or self-service stations in high-traffic areas like shopping malls, airports, or train stations. The display's robust build and wide viewing angles (89°/89°/89°/89°) make it a valuable asset for places where customers or visitors need easy access to information from various perspectives. Whether displaying wayfinding maps, event schedules, or public announcements, it ensures that content is always visible and engaging to the audience, even in busy, dynamic environments.
The Linux-based screen is also highly versatile for interactive applications in both public and professional contexts. It can be deployed in queue management systems, where it displays wait times or customer numbers, or integrated into digital signage for broadcasting multimedia content such as advertisements, corporate messages, or news updates. Its Wi-Fi connectivity and USB ports ensure seamless content updates, making it an effective solution for businesses that need flexible, easy-to-manage displays. Moreover, the screen's low power consumption (≤ 30 watts) ensures energy efficiency, making it a cost-effective option for long-term operations in settings like lobbies, waiting areas, or customer feedback stations.
