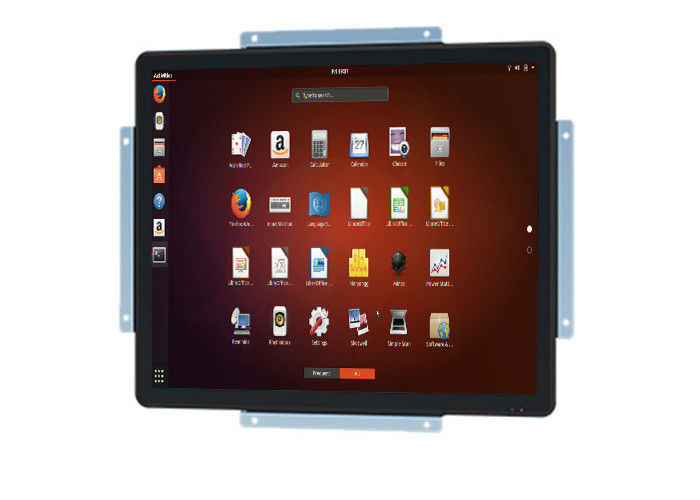

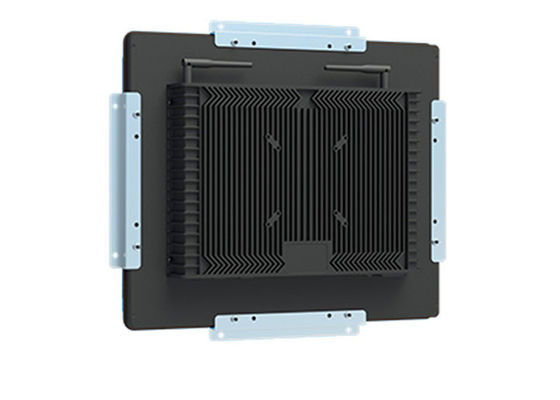

19-Inch Linux Screen for Transportation Systems and Access Control Panels

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-E190BLWFS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight cases are optional
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	19 Inch	Aspect Ratio:	4:3
Brightness:	250 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

19-Inch Linux Screen for Transportation Systems and Access Control Panels

LCD Panel Parameters	Screen Size	19 Inch
	Display Area	375.2 mm.(Height) X 299.2(Width)mm.
	Aspect Ratio	4 : 3
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 1024
	Display Color	16.7m , 73% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1000 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	100Hertz
Internal computer configuration (Choose one of two)	CPU	Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz	Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
	Graphics Card	Integrated Graphics Card Intel® HD 4600	Integrated Graphics Card Intel® HD 530
	RAM	4GB	8GB
	Storage Memory Capacity	128GB	256GB
	OS	Linux	Linux
	Wi-Fi Built-in	Speed 150Mbps 802.11n wifi Integrated	Speed 150Mbps 802.11n wifi Integrated
Media Format	Video Format	wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
	Audio Format	MP3, WMA
	Photo Format	BMP, JPEG, PNG, GIF etc.
Onboard Interface	Network port	RJ45 X 1, 10M/100M Adjustable Ethernet
	HDMI	1
	USB	4
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	422 X 346 X 50.7mm.
	Net Weight	6.5 Kilogram
	Package Size	47.4 X 40.6 X 10.1Centimeter
	Gross Package Weight per Unit	7 Kilogram
