Give your amazing touch and visual experience !!!
 |
| Place of Origin: | China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXT-KTP430D |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 10-15 workdays |
| Payment Terms: | T/T,Western Union, Alibaba trade assurance |
| Supply Ability: | 2,000 pcs per month |
| Product Name: | All In One PC Touch Screen Totem Kiosk | Size: | 43 Inch |
|---|---|---|---|
| Power Input: | 100 To 240V AC | Network: | WIFI, 3G/4G/LAN |
| Operation Systems: | Windows 7, 8 10 | Brightness: | 400cd/m2 |
| Resolution: | 1920*1080 | ||
| High Light: | 400cd/m2 Multi Touch Surface Table,Full HD Multi Touch Surface Table |
||

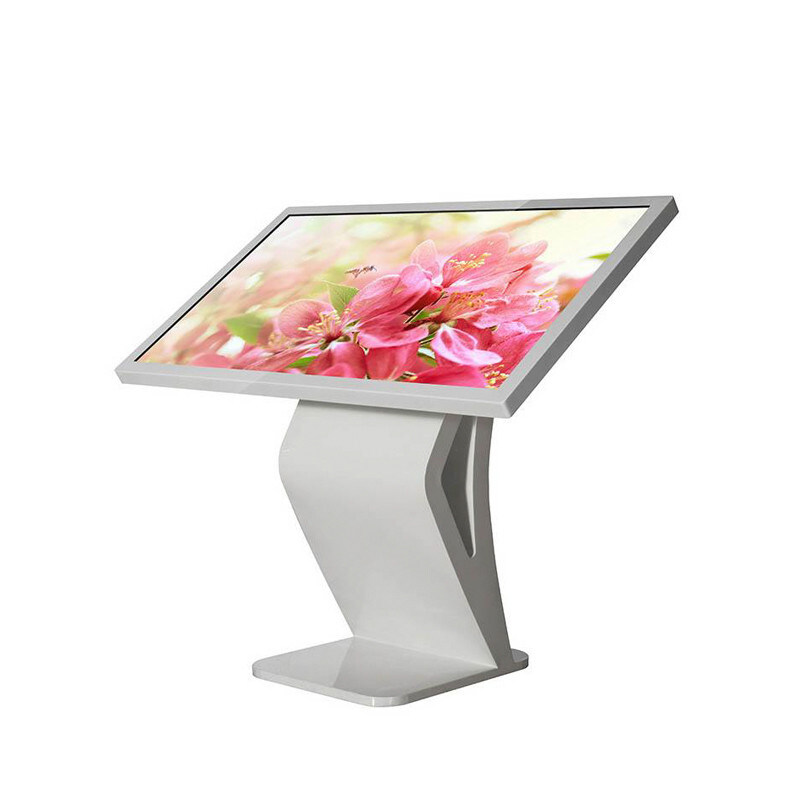

100-240V AC Input Advertisement Display All In One Pc Wifi Touch Screen 43 Inch Totem Kiosk
Features of Touchscreen Kiosk
♦ Infrared Multi-point Touch
♦ Full HD Display 1080P
♦ Energy Efficient
♦ Complies With HID Equipment Standard
♦ Touchscreen Detection Software Supports Full Screen Detection
♦ Location and Adjustment
♦ Ambient Light Sensor
♦ Anti-light Interference Function
♦ Intel Core i3, i5, i7 Processor; Based on intel Standard OPS platform
Design and Construction of TouchScreen Kiosk
♦ The aesthetic and functional design of interactive kiosks is a key element that drives user adoption, overall up-time and affordability. There are many factors to consider when designing an interactive kiosk including:
♦ Aesthetic design: The design of the enclosure is often the driving factor in user adoption and brand recognition.
♦ Graphic messaging: Plays a key role in communicating with potential users.
♦ Maintenance and thermal design: Critical in order to maximize up-time
♦ Component specification: Typical components include Touch-screen, P.C., pointing device, keyboard, bill acceptor, mag-stripe and/ or bar-code scanner, surge protector, UPS, etc.
♦ Ergonomic: Is important to ensure comfortable and easy user accessibility.
♦ Durability: The intended location of the kiosk will largely influence the construction as materials and electronic requirements are significantly different for indoor vs. outdoor kiosks.
Displays of Touchscreen Kiosk
Specifications of TouchScreen Kiosk
| Product Specifications | ||||
| Panel Size | 32” | 43” | 49” | 55” |
| Resolution | 1920 x 1080 1080P | 1920 x 1080 1080P | 1920 x 1080 1080P | 1920 x 1080 1080P |
| Visual angle L/R | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Brightness | 350 cd/m2 | 400 cd/m² | 400 cd/m² | 450 cd/m² |
| Display Area | 697.7(H)x392(V)mm | 930.24(H)x523(V)mm | 1073.78(H)x604(V)mm | 1209(H)x680(V)mm |
| Contrast ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Color | 16.7M | 16.7M | 16.7M | 16.7M |
| Operating Voltage | AC 100V-240V, 50/60 Hz | AC 100V-240V, 50/60 Hz | AC 100V-240V, 50/60 Hz | AC 100V-240V, 50/60 Hz |
| Power Consumption | 170W | 175W | 175W | 270W |
| Operation System | ||||
| Operating System | Windows 7/8/10 | Android 4.4 (up to 5.1) | ||
| Main board | MSI B751A-E33 | Rockchip RK3288 | ||
| RAM | 4GB | 2GB | ||
| Memory/ROM | WD500GB, 5400 Revolution | 8GB eMMC, TF/USB extended memory | ||
| CPU | Intel core2 i3 /i5 /i7 | Quad Core 1.8GHz | ||
| Graphic | Intel HD Graphics 2500 | Quad Core ARM Mail-764 | ||
| Signal interface |
Support HDMI Inputx1 VGAx1 DVIx1 USBx4 AVx3 |
Support HDMI Inputx1 VGAx1 USBx2 |
||
| Internet interface | RJ45x1 Ethernetx1,10/100M, Wifi ×1,WIFI(802.11bgn) 3G/4G Slot | |||
| IR Touch Screen | ||||
| Interpolation resolution | 32767 x 32767 | |||
| Response Time | <20ms | |||
| Physical Hardness | Moh’s Scale 7 | |||
| Smallest touch object | 5mm | |||
| Touch Accuracy | Touch area over 90%±2mm | |||
| Touch screen | Multi-touch (6-32) touch Point Optional area over 90%±2mm | |||
| Input mode | Finger, Touch pen or light proof objects | |||
Applications of TouchScreen Kiosk
The basic application of touchscreen kiosks in the hotel industry is to reduce waiting time for guests at check-in / checkout and relieve the reception desk. Usually, hotel touchscreen kiosks are located in the lobby and are integrated or interface with the hotel's property management system. The machines allow guests to fill in and sign a registration card, select a room, issue hotel key cards, check for extra offers or upgrades and book and pay for them. In retail, clients can place online orders in store for home delivery, avoid queuing in fast food restaurants and issue library books. Generally, Touchscreen kiosks are seen as an enhancement to a retail or hospitality offer rather than a replacing staff members.
