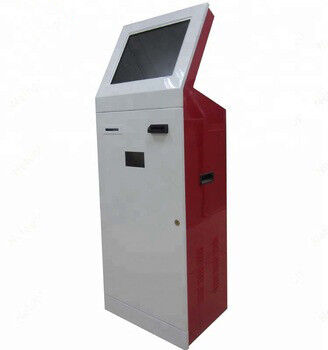

RS232 300nits 19 Inch Automatic 3G Payment Kiosk For Bank

RS232 300nits 19 Inch Automatic 3G Payment Kiosk For Bank

  • RS232 300nits 19 Inch Automatic 3G Payment Kiosk For Bank
  • RS232 300nits 19 Inch Automatic 3G Payment Kiosk For Bank
RS232 300nits 19 Inch Automatic 3G Payment Kiosk For Bank
Product Details:
Place of Origin: China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC/ERP Energy Label
Model Number: ZXT-8008
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiate
Packaging Details: wooden case, carton, flight case are option
Delivery Time: 25 workdays
Payment Terms: T/T,Western Union, Alibaba trade assurance
Supply Ability: 1,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Standing Payment Kiosk Terninal Size: 19 Inch
Type: Standing Application: Indoor
Network: WIFI, 3G Warranty: 12 Months
High Light:

19 Inch Automatic 3G Payment Kiosk

,

300nits Automatic 3G Payment Kiosk

,

RS232 Floor Stand Payment Terminal

19 Inch Standing Indoor Automatic 3G Payment Kiosk Terminal





Indoor automatic 3g payment kiosk terminal kiosk with bill acceptor&bill dispenser. It supports USD dollars, Pound Sterling, French Franc, Deutsche Mark, Japanese Yen, Indian Rupee, Malaysian dollar......etc



Parameter:

Touch screen+LCD monitor+embeded PC+enclosure+ additional parts



Computer part



a. CPU: Intel G1037 CPU

b. Hard disk: Seagate 500G

c. RAM: KingMAX 4GB

d. Ports: USB ports, RS-232 ports

e. Industrial mainboard



Monitor (17 LCD)

Brightness: 300cd/m2, angle:horizontal 100°above, Vertical 80°above
Contrast: 1000:1, Backlight tube life:more than 40,000hours
Operating temperature: -20-50°C
Response Time: 16ms,Dot pitch: 0.297, Max. resolution: 1280×1024



Touch screen (17 Infrared / Resistive/ SAW )

High Transparence, high precision and durability
Resolution:4096×4096,Brightness:300cd/m2
lens transmission:90% ~92%,
Orientation precision< 2mm(0.080 inch), pure tempered glass,
Single-point touch Life expectancy more 50,000,000 times
antirust,anti-acid,anti-dust



Additional parts:

16/64bits metal keyboard with pin pad

Cash acceptor(bill acceptor,money acceptor) with change function.

Coin acceptor

Receipt printer(Thermal printer)

ports (4 ports RS232)
GPRS modem

Watchdog
UPS for power supply

Barcode scanner for 1D/2D/3D barcode scanner or qr code reader available

Card dispense-magnetic card reader or contactless IC/ID card reader

A4 laser /thermal printer for printing receipts and documents that user need

Wireless connective (WIFI,GSM/GPRS)

Camera..........





Application



1.Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3.Non-profit Organizations: Telecommunications, post offices, hospital, schools

4.Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

6.Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
