Give your amazing touch and visual experience !!!
 |
| Place of Origin: | China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-BAR280AHMJ |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Machine body appearance wrapped in pearl carton firstly, packedin wooden box |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 300pcs per month |
| Screen Size: | 28.1" LCD Panel | Active Display Area: | 698.4(H) X 129.86(V)mm |
|---|---|---|---|
| Resolution: | 1920(V) X 357(H) | Brightness: | 700cd/m2 |
| Contrast Ratio: | 1200:1 | Backlight Type: | WLED |
| CPU: | Rockchip PX30 Quad Core ARM Cotex-A35 | Interface: | USB2.0/OTG USB/TF/RJ45 |
| Operating Voltage: | 100-240V(50/60Hz) | Power Consumption: | ≤30W |
| High Light: | 28in Stretched Bar Panel,700cd/m2 Stretched Bar Panel,30W Digital Signage Media Player |
||

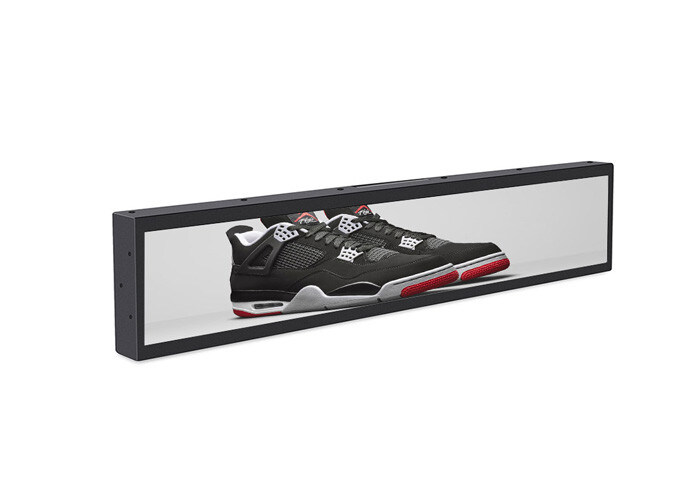

28 inch wall mounted stretched bar panel with digital signage media player inside
Stretched bar panel is a commercial display product with an ultra wide LCD screen. In order to meet different needs, it has various of display ratios of length and width. Based on common usage and customer requirements, ZXTLCD provides dozens of all-in-one digital signage stretched displays and stretched lcd monitors, as a way to offer cost-effective overall solutions, while remaining open to more possibilities. ZXTLCD stretched bar panel have many sizes, configurations and features, making them adaptable to all sorts of digital signage projects. We offer professional installation advice and after-sales service, helping you to get started in no time. It’s time to stretch your view as well as your imagination to complete an unprecedented digital experience.
The specification
| The specification | ||
| Model No | Product model | ZXTLCD-BAR280AHMJ |
| LCD Screen Panel | Screen size | 28.1" LCD Panel |
| Active display area | 698.4(H) X 129.86(V)mm | |
| Resolution | 1920(V) X 357(H) | |
| Brightness | 700cd/m2 | |
| Contrast ratio | 1200:1 | |
| Display color | 16.7M | |
| Backlight type | WLED | |
| Viewing angles | 89°/89°/89°/89°(U/D/L/R) | |
| Response time | 9.5ms | |
| Lifespan | 50000 hours | |
| Monitor PCB Board | CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
| RAM | 1G DDR3(1 G/2G for optional ) | |
| ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional) | |
| Memory extension | TF Card extension with the highest support for 64GB | |
| System | Android 8.1 | |
| Internet | Support 2.4G WIFI connection | |
| Interfaces | 1*USB2.0 | |
| 1*OTG USB | ||
| 1*RJ45 | ||
| Video formats | wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 | |
| Photo formats | BMP,JPEG,PNG,GIF | |
| machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤30W | |
| Product size | 737(H)X168.5(V)X40.5(D)mm | |
| Installation | Embedded, wall-mounted | |
| Appearance material | Metal shell | |
| Net weight | ≤3.8KG | |
| Surface treatment | Black metal paint | |
| Environmental | Storage Environment | Temperature:-20℃～60℃ |
| Humidity:5%～95% | ||
| Atmospheric Pressure:86kPa～104kPa | ||
| Working Environment | Temperature:-10℃～50℃ | |
| Humidity:10%～85% | ||
| Atmospheric Pressure:86KPa～104KPa | ||
| Packing list | Bar lcd display | 1pcs |
| Power Cable | 1Pcs | |
| Support special requirements customization | ||
The design drawing as follows :
Product Physical Photo as follows :
Which essential factor are needed confirmation for Stretched bar panel before get a accurate cost?
1 Accurate screen size: various screen size with different cost difference .
2 Internal PCB board configuration : In general, we default Monitor PCB board with HDMI port, besides, the cost variance of Android PCB board is only 75USD per unit, However, the main cost variance depend on various internal PC configuration, please consult our salesman about the cost of PC according to your detailed requirements.
3 Any additional requirements need pay extra cost such as anti-glare glass requirements.
4 Quantity : we also accept sample for testing as trail order, For sample or few machine, we usually use wooden box or wooden frame to pack the goods to ensure the safety in the transport. So, the cost will be higher a little due to the extra package cost. If you order a big quantity, we can use container to ship the goods, no need extra wooden frame as outer package.
If you would like to discuss your requirement or need any additional information on our Stretched bar panel, and then please do not hesitate to contact our sales team.
