Give your amazing touch and visual experience !!!
 |
| Place of Origin: | China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-BAR439AJSY |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Machine body appearance wrapped in pearl carton firstly, packedin wooden box |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 300pcs per month |
| Screen Size: | 43.9" LCD Panel | Active Display Area: | 1073.78(H) X 302(V)mm |
|---|---|---|---|
| Resolution: | 3840(V) X 720(H) | Brightness: | 500cd/m2 |
| Interfaces: | USB2.0 / RJ45 / OTG USB | Video Formats: | Wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 |
| ROM: | Android 9.0 | Power Consumption: | ≤60W |
| Product Size: | 958(H)X297(V)X49(D)mm | Installation: | Embedded, Wall-mounted |
| High Light: | 43.9 Inch Ultra Wide Lcd Display,Android 9.0 Ultra Wide Lcd Display,500cd/M2 Stretch Lcd Screen |
||
43.9 inch Ultra-Wide Stretched (Cut) Displays Bar Type lcd display monitor
Which essential factor are needed confirmation for Stretched type bar lcd display before get a accurate cost?
1 Accurate screen size: various screen size with different cost difference .
2 Internal PCB board configuration : In general, we default Monitor PCB board with HDMI port, besides, the cost variance of Android PCB board is only 75USD per unit, However, the main cost variance depend on various internal PC configuration, please consult our salesman about the cost of PC according to your detailed requirements.
3 Any additional requirements need pay extra cost such as anti-glare glass requirements.
4 Quantity : we also accept sample for testing as trail order, For sample or few machine, we usually use wooden box or wooden frame to pack the goods to ensure the safety in the transport. So, the cost will be higher a little due to the extra package cost. If you order a big quantity, we can use container to ship the goods, no need extra wooden frame as outer package.
The specification
| The specification | ||
| Model No | Product model | ZXTLCD-BAR439AJSY |
| LCD Screen Panel | Screen size | 43.9" LCD Panel |
| Active display area | 1073.78(H) X 302(V)mm | |
| Resolution | 3840(V) X 720(H) | |
| Brightness | 500cd/m2 | |
| Contrast ratio | 2000:1 | |
| Display color | 16.7M | |
| Backlight type | WLED | |
| Viewing angles | 89/89/89/89 (Typ.)(CR≥10) | |
| Response time | 9ms | |
| Lifespan | 50000 hours | |
| Monitor PCB Board | CPU | T972 ,Quad core A35 |
| RAM | 2gb | |
| ROM | 8gb EMMC | |
| System | Android 9.0 | |
| Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
| RTC real time clock | Support timing on / off function | |
| Interfaces | 1*USB2.0 | |
| 1*OTG USB | ||
| 1*RJ45 | ||
| Video formats | wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 | |
| Photo formats | BMP,JPEG,PNG,GIF | |
| machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤60W | |
| Product size | 1112(H)X340(V)X52(D)mm | |
| Installation | Embedded, wall-mounted | |
| Apperance material | Metal shell | |
| Net weight | ≤26KG | |
| Surface treatment | Black metal paint | |
| Environmental | Storage Environment | Temperature:-20℃～60℃ |
| Humidity:5%～95% | ||
| Atmospheric Pressure:86kPa～104kPa | ||
| Working Environment | Temperature:-10℃～50℃ | |
| Humidity:10%～85% | ||
| Atmospheric Pressure:86KPa～104KPa | ||
| Packing list | Bar lcd display | 1pcs |
| Power Cable | 1Pcs | |
| Support special requirements customization | ||
The design drawing as follows :

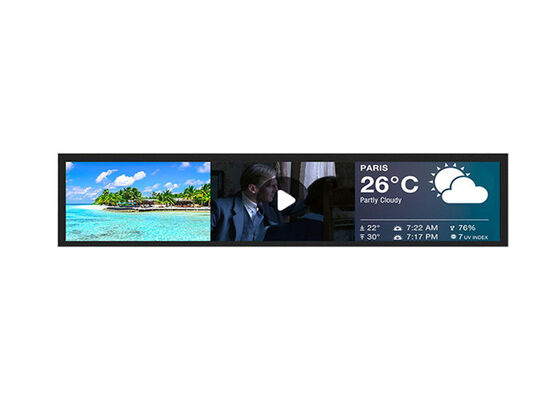

Product Physical Photo as follows :
What kinds of Stretched bar lcd display can ZXT LCD process?
Stretched lcd panel, stretched lcd monitor, stretched lcd monitor with touchscreen , stretched lcd android all in one PC, stretched lcd all in one PC etc.
What’s the typical assemble process flow of bar type lcd display?
Purchasing Square LCD Panel → Purchasing shell and electronic parts → Assemble → operating system installed → software installed →Testing 72 hours →record → Visual Inspection.
If you would like to discuss your requirement or need any additional information on our bar type Lcd display , and then please do not hesitate to contact our sales team.
