Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E156BACT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Android Versions: | 10; 13 | RAM+ROM: | 2+32GB; 4+32GB |

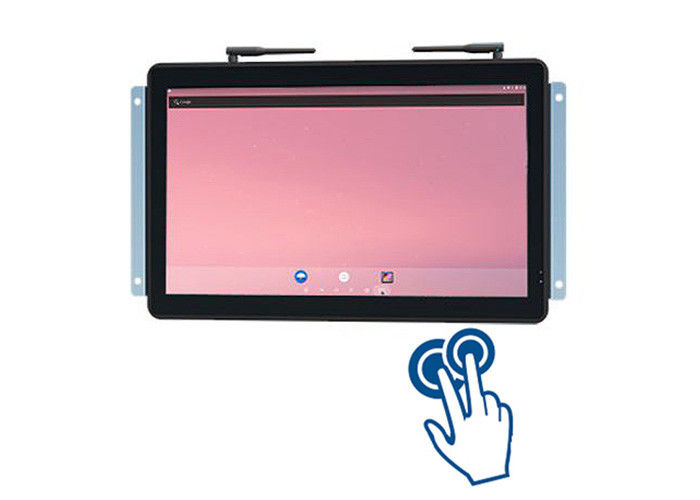

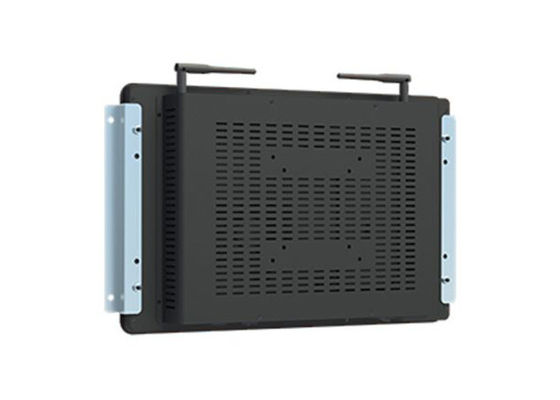

The 15.6-inch Android touch vision terminal is an essential tool for industrial automation systems, where precision and reliability are key. Featuring a high-definition 1920x1080 resolution, this terminal allows operators to monitor complex systems with ease. Whether used for machine control panels, robotic systems, or production line monitoring, this terminal ensures smooth interaction with its 10-point capacitive touchscreen. The system's rugged design and high brightness of 250cd/m² make it perfect for industrial environments with varying light conditions. The Android 10.0 or 11.0 operating system ensures seamless connectivity with industry-standard software, enabling real-time data visualization, diagnostics, and control. Additionally, with its long lifespan and resilient design, the device can endure continuous operation in harsh environments, ensuring efficiency and uptime.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 11.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | USB2.0 x 2 | ||
| HDMI IN x 1 | ||||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 383.4 X 243.4X 49mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 45 X 32 X 15Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
In the smart retail sector, the 15.6-inch interactive terminal plays a pivotal role in enhancing customer experience and streamlining business operations. Retailers can deploy the terminal as part of self-service kiosks, digital price tags, or interactive displays in stores. With its capacitive touchscreen and precise touch accuracy, customers can easily browse products, check out, or access promotions. Its Wi-Fi and Ethernet connectivity options support smooth integration with existing systems for real-time stock updates and secure transactions. The terminal's high contrast ratio ensures that the display is clear and easy to read, even under bright store lighting. The Android system offers the flexibility to run various applications tailored to smart retail systems, enabling a seamless shopping experience that keeps customers engaged and businesses efficient.
The 15.6-inch Android terminal is also ideal for energy monitoring and management applications. With its bright, high-resolution screen and touch interface, it becomes an invaluable tool for smart energy meters, building management systems, and renewable energy monitoring platforms. The terminal can display real-time data on energy consumption, solar panel performance, or grid status, enabling efficient energy management and decision-making. Thanks to its Android platform, it can integrate with cloud-based applications and IoT devices, allowing users to access detailed insights and analytics remotely. Additionally, the terminal's rugged, durable build ensures it can withstand varying environmental conditions, making it a reliable solution for both indoor and outdoor energy monitoring installations. Whether used in industrial plants or smart homes, this device provides a robust and intuitive interface for managing energy systems.
