Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E270BAWFS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 27 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

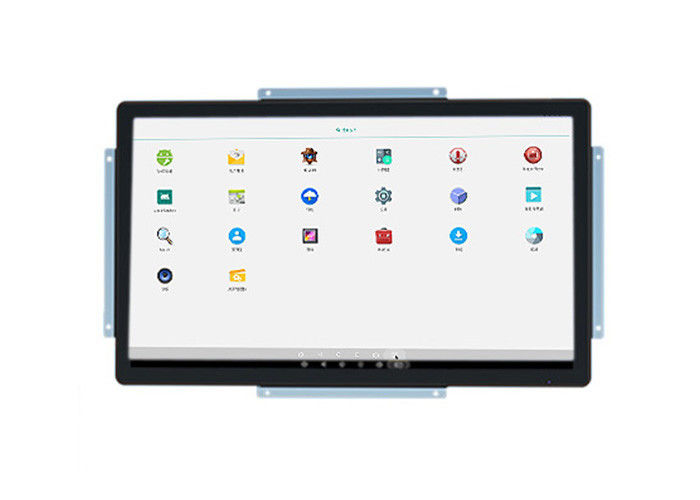

The 27-inch Android All-in-One offers a state-of-the-art solution for digital advertising and interactive displays in smart cities. With its stunning 4K resolution and vibrant color gamut, this display ensures that advertisements, public service announcements, and dynamic content stand out in any environment. Its high brightness of 400cd/m² ensures visibility even in well-lit public spaces such as transportation hubs, shopping malls, and city streets. With built-in Android OS and Wi-Fi connectivity, content can be easily updated remotely via cloud services, enabling real-time updates for event schedules, news broadcasts, and even weather alerts. Furthermore, its wide viewing angles make it perfect for areas where audiences are positioned at different points, ensuring that the content is legible from all directions.
| LCD Panel Parameters | Screen Size | 27 Inch | ||
| Display Area | 476.5 mm (Height) X 268 mm (Width) | |||
| Aspect Ratio | 16 : 9 | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 | ||
| Display Color | 16.7m , 99% sRGB | 1.07B , 95% DCI-P3 | ||
| Brightness | 300cd/m² | 400cd/m² | ||
| Contrast Ratio | 1000 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) | ||
| Response Time | 14ms | 14ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Configuration PCB Android Built-in (Choose one of two) |
CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 11.0 | ||
| Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | USB2.0 x 2 | ||
| HDMI IN x 1 | ||||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 45 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 651.4 X 389.6 X 58.9 mm. | ||
| Net Weight | 10 Kilogram | |||
| Package Size | 72 X 47 X 15Centimeter | |||
| Gross Package Weight per Unit | 11 Kilogram | |||
In smart city infrastructure, the 27-inch Android all-in-one display serves as an ideal interactive kiosk for both citizens and visitors. Its responsive touch capabilities can provide access to local government services, tourism information, and wayfinding solutions. Whether displayed in a public park, city square, or train station, this device’s large display ensures easy navigation through complex city systems and access to key services. Its advanced GPU and high-performance CPU support smooth operation of interactive apps, creating an engaging and intuitive user experience. Additionally, its Bluetooth and USB ports allow integration with other systems such as QR code scanning, contactless payment solutions, and data gathering tools to improve urban experiences.
For digital signage in commercial spaces, the 27-inch Android all-in-one excels as a versatile solution for retailers and brands seeking to engage customers. Whether in shopping malls, airports, or restaurants, it can be used to deliver targeted ads, promotions, and product information, tailored to the audience in real time. The device’s customizable content can feature video displays, images, and live feeds, and can be synchronized across multiple units to ensure consistent messaging throughout large areas. With its powerful performance and high-definition display, this system enables businesses to enhance their customer engagement and brand visibility in a way that is both cost-effective and impactful. Additionally, its ability to seamlessly integrate with cloud-based software makes it an ideal choice for multi-location businesses looking to manage and control their digital advertising networks.
