Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E156BA |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| RAM+ROM: | 2+32GB; 4+32GB | OS: | Android 11 |

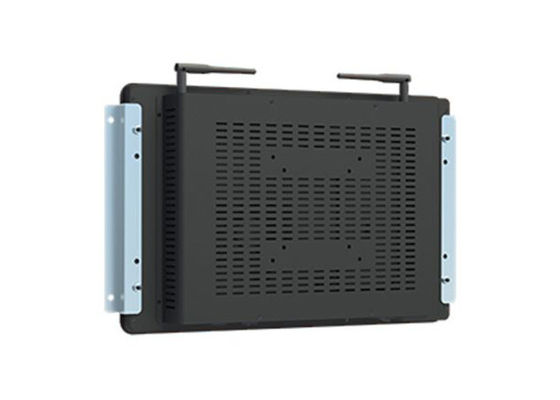

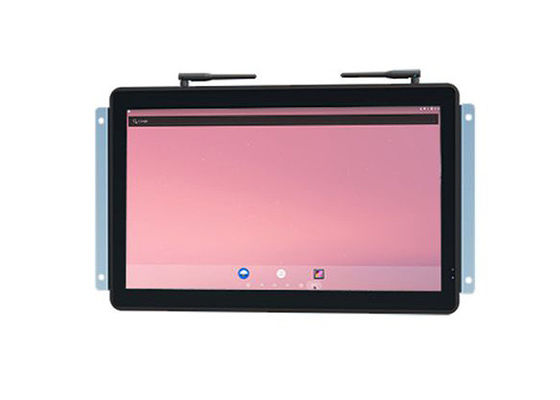

The 15.6-inch all-in-one Android display is ideal for industrial dashboards, offering robust performance in environments where real-time data monitoring is critical. Whether used in manufacturing plants, warehouse management, or logistics tracking systems, the screen provides clear, high-definition visuals with a maximum resolution of 1920x1080. The wide viewing angles and consistent brightness ensure that the data, charts, and real-time updates are easily readable from various distances and angles. With a quad-core CPU and Android operating system, the device supports seamless integration with industrial software, providing a reliable and intuitive interface for operators. Additionally, the Ethernet and Wi-Fi capabilities ensure that it can stay connected to a network for live data updates, making it an ideal solution for fleet management, supply chain monitoring, or equipment diagnostics.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 11.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | USB2.0 x 2 | ||
| HDMI IN x 1 | ||||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 383.4 X 243.4X 49mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 45 X 32 X 15Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
This 15.6-inch Android display is also highly effective in logistics management, where real-time tracking of shipments, stock levels, and warehouse operations is essential. Equipped with a highly responsive interface, this monitor can display live updates on inventory systems or even function as a control center for automated logistics systems. Its stereo audio system and multiple connectivity options, such as HDMI and USB ports, make it suitable for use in settings where both visual and audio alerts are crucial, like in inventory tracking stations or delivery confirmation systems. The display's Android compatibility allows easy customization to meet the specific needs of logistics and distribution companies, enhancing operational efficiency and productivity.
Additionally, the 15.6-inch display is well-suited for a range of interactive kiosk applications in environments like retail outlets, service centers, or customer-facing dashboards. The Android platform supports a variety of interactive tools, from self-check-in kiosks to information touchpoints, allowing businesses to provide real-time customer engagement and support. With its compact design and energy-efficient performance, it is perfect for environments where space is limited and power efficiency is crucial. The wireless internet support ensures that it can easily integrate with cloud-based solutions, making it a versatile option for dynamic digital signage, wayfinding systems, or advertising displays in commercial and public spaces.
