Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E215WAB |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 21.5 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

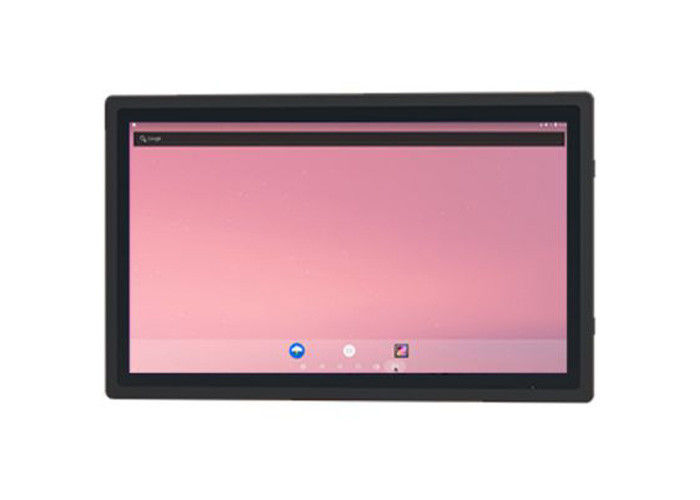

The 21.5-inch high-performance Android display is a top-tier solution for digital signage in high-traffic environments such as malls, airports, and transportation hubs. Featuring an impressive 1920x1080 resolution and a contrast ratio of 3000:1, it provides vibrant, crystal-clear visuals for displaying advertisements, promotions, and real-time information. Its wide viewing angles ensure that the content is visible from various directions, making it ideal for public spaces. With built-in Ethernet and Wi-Fi connectivity, this display allows for seamless remote content management, enabling businesses to update and monitor their digital signage from anywhere, whether in a shopping center or at exhibition events. Additionally, the unit's stereo audio output adds an extra layer of engagement, ideal for interactive content or public announcements.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.5 mm (Height) X 268 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Configuration PCB Android Built-in (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 11.0 | ||
Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | USB2.0 x 2 | ||
HDMI IN x 1 | ||||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 535.9 X 332.5 X 49.95 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 62 X 42 X 15Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
In industrial control settings, the 21.5-inch Android screen is an invaluable tool for monitoring complex operations in fields like manufacturing, energy, and automation. With its high resolution and responsive touch interface, it can function as a real-time control panel for production lines, displaying important metrics, status reports, and alerts. This enables operators to make informed decisions quickly. Its rugged design and operating temperature range of 0°C to 50°C make it a durable choice for factory floors or harsh environments. Moreover, the powerful Android system and integrated Bluetooth and Wi-Fi connectivity allow easy integration into existing industrial software, ensuring that this display can support data visualization, remote diagnostics, and real-time control systems.
For interactive kiosks and self-service stations, the 21.5-inch Android screen provides an engaging interface for customers in retail, hospitality, and service industries. Its high brightness and wide viewing angles make it perfect for customer-facing applications like wayfinding, check-in systems, and digital directories. Whether it’s a ticketing kiosk, a self-order terminal at a restaurant, or a hotel check-in booth, the screen's clear resolution and fast response time ensure a smooth, user-friendly experience. Additionally, with built-in Ethernet and Wi-Fi 6, the screen supports efficient data synchronization, enabling businesses to deliver timely, updated information to users. With its energy-efficient design and low power consumption in standby mode, it also ensures cost-effective operation, even with continuous usage.
