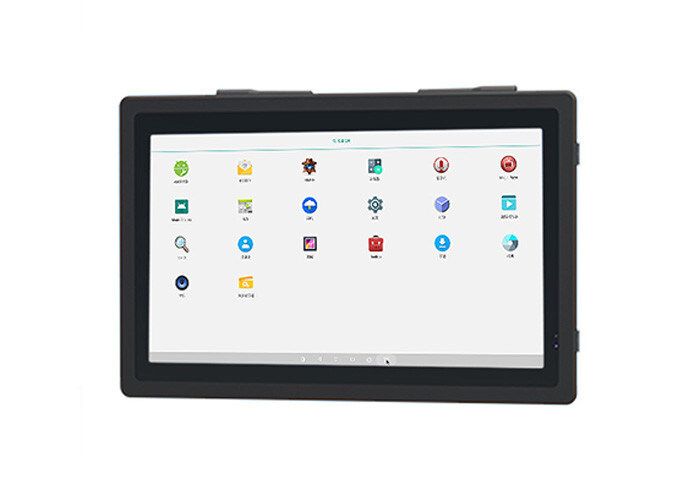

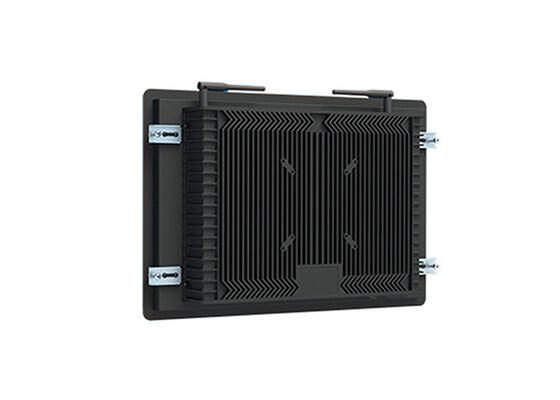

15.6-Inch Full HD resolution touch screen panel Response Time 30ms

15.6-Inch Full HD resolution touch screen panel Response Time 30ms

  • 15.6-Inch  Full HD resolution touch screen panel Response Time 30ms
  • 15.6-Inch  Full HD resolution touch screen panel Response Time 30ms
15.6-Inch  Full HD resolution touch screen panel Response Time 30ms
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E156WABWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C,T/T,Western Union,
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 15.6 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An
Highlight:

Full HD resolution screen panel

,

Response Time 30ms screen panel

,

industrial touch screen panel

15.6-Inch Compact Android Display for Factory Dashboards and Security Solutions

The 15.6-inch Android display is a versatile solution for factory dashboards where real-time monitoring of production processes and machine performance is crucial. Its Full HD resolution and high brightness make it an ideal interface for viewing critical metrics such as temperature, pressure readings, and output rates, even in bright factory settings. With remote connectivity options like Ethernet and Wi-Fi 6, this screen ensures seamless integration with central control systems for live data updates and remote management. Whether for workshop displays or automated production lines, this device provides a reliable, energy-efficient platform for industrial environments. The touch interface enhances operational efficiency, allowing factory operators to interact with the system to adjust settings or address any issues directly on the screen.

LCD Panel Parameters Screen Size 15.6 Inch
Display Area 344.16 mm.(Height) X 193.59(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7M , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 700 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ω
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11.0
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 USB2.0 x 2
HDMI IN x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 403.9 X 263.9X 56.7 mm.
Net Weight 5 Kilogram
Package Size 47 X 33 X 17 Centimeter
Gross Package Weight per Unit 5.5 Kilogram


In security applications, the 15.6-inch display serves as an integral part of surveillance systems, offering a clear and reliable interface for monitoring video feeds and security cameras. With its wide viewing angles and sharp resolution, the display is suited for command centers and security rooms where multiple video feeds need to be visible at once. The real-time video monitoring functionality ensures that security personnel can stay up to date with the latest footage, while the screen's stereo speakers provide enhanced sound clarity for any audio cues or alarms. Additionally, the multi-connectivity options such as USB, Ethernet, and HDMI inputs allow the system to easily interface with DVRs or NVRs for added security integration, making it an excellent choice for security operations in corporate offices, warehouses, or public facilities.

15.6-Inch  Full HD resolution touch screen panel Response Time 30ms15.6-Inch  Full HD resolution touch screen panel Response Time 30ms15.6-Inch  Full HD resolution touch screen panel Response Time 30ms15.6-Inch  Full HD resolution touch screen panel Response Time 30ms15.6-Inch  Full HD resolution touch screen panel Response Time 30ms15.6-Inch  Full HD resolution touch screen panel Response Time 30ms15.6-Inch  Full HD resolution touch screen panel Response Time 30ms
The 15.6-inch Android display also proves invaluable in point-of-sale (POS) systems and customer-facing kiosks. Whether in a retail store, restaurant, or self-service checkout system, this display allows businesses to deliver smooth, responsive, and interactive experiences. Customers can easily view product information, place orders, or check out, all through the high-resolution touch screen. The screen’s compact size makes it an ideal choice for spaces where limited room is available, without sacrificing functionality. With its Android-based system, businesses can customize software solutions tailored to their needs, whether it’s for order management, inventory checks, or transaction processing. Furthermore, the low power consumption of the device ensures that it operates efficiently over long periods, making it an eco-friendly and cost-effective solution for businesses.
