Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E170WLS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 17.0 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|

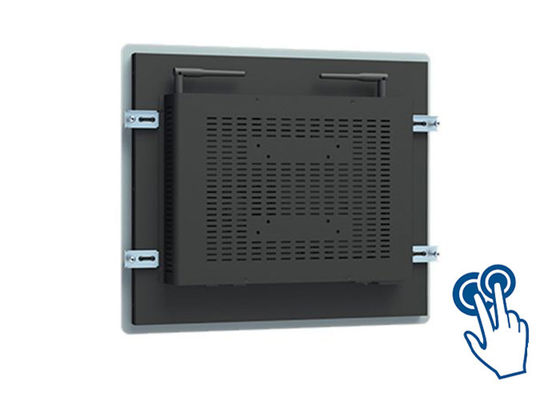

Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

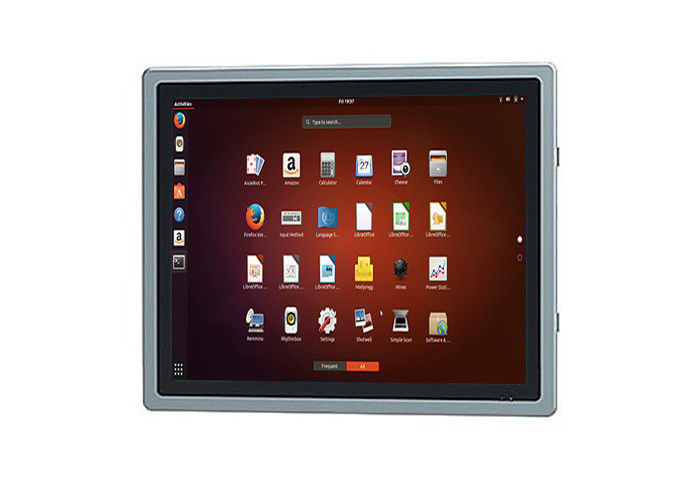

This 17-inch Linux monitor is designed for high-demand industrial environments where reliability and performance are critical. With its 1280x1024 resolution, the monitor delivers crisp visuals, making it ideal for factory automation systems, assembly line monitoring, and process control. The 250cd/m² brightness ensures clear visibility even in well-lit environments, while the 1200:1 contrast ratio enhances the clarity of details across a range of lighting conditions. Its wide viewing angles provide consistent image quality from various positions, making it a suitable choice for operator panels, machine interfaces, or industrial data displays. The robust design guarantees that it operates efficiently within temperature ranges from 0°C to 50°C, ensuring reliable performance even in extreme conditions.
LCD Panel Parameters | Screen Size | 17 Inch | ||
Display Area | 337.92 mm.(Height) X 270.34(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1280 X 1024 | |||
Display Color | 16.7M , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1200 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 20ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 400.6 X 338.6 X 50 mm. | ||
Net Weight | 5.5 Kilogram | |||
Package Size | 48 X 39 X 15 Centimeter | |||
Gross Package Weight per Unit | 6 Kilogram |
In security operations, the 17-inch monitor proves to be an essential tool for surveillance systems. Its high contrast ratio and sharp color accuracy are perfect for displaying live video feeds from CCTV cameras, motion detection systems, and alarm interfaces. Whether used in control centers or security monitoring stations, this monitor ensures that operators have a clear, detailed view of all incoming data. The integrated audio system provides an additional layer of functionality, allowing for real-time audio monitoring in tandem with video feeds. From intruder detection to site surveillance, this monitor supports security personnel in identifying critical events promptly. The high durability and long lifespan (up to 60,000 hours) make it a dependable choice for 24/7 operations.
The 17-inch Linux monitor also serves as an excellent solution for public information systems, including digital signage and interactive kiosks. With its vibrant display and versatile interface options, it can showcase dynamic advertisements, transportation schedules, and wayfinding solutions in locations such as airports, train stations, and shopping malls. Its ability to integrate with networked systems via Wi-Fi and Ethernet allows for remote management, making it ideal for locations requiring frequent updates or changes. The monitor’s compatibility with various media formats (e.g., video, images, and audio) ensures that content can be displayed in a multimedia-rich format to engage customers or visitors effectively. Whether used for information kiosks, digital billboards, or interactive directories, this monitor offers a reliable and flexible display solution for high-traffic public spaces.
