Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E190WLBWFS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 19.0 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

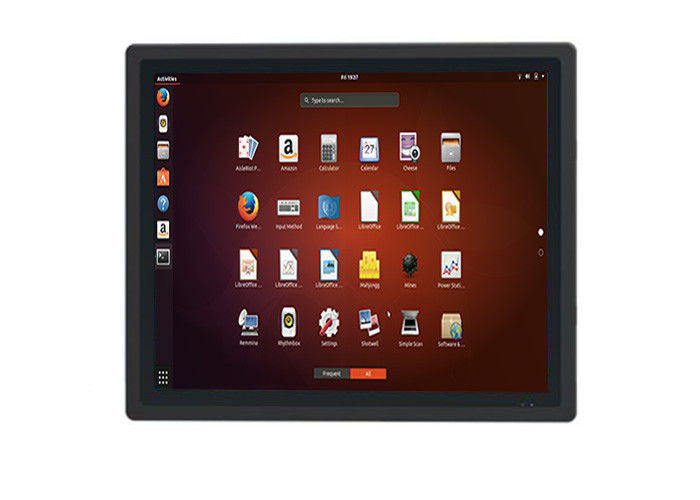

The 19-inch integrated Linux display is an excellent choice for access control systems, ensuring high-performance functionality with a 1280x1024 resolution and clear image quality. Ideal for applications such as employee identification kiosks, security checkpoint terminals, and visitor registration systems, this monitor offers superior clarity and detailed graphics. Its wide viewing angles and balanced brightness of 250cd/m² ensure clear visibility in both brightly lit entrances and dimly lit rooms, making it effective for environments like office buildings, hospitals, or government facilities. The integrated audio system further enhances its utility, providing audible alerts or notifications as part of security procedures, ensuring smooth and efficient operation.
| LCD Panel Parameters | Screen Size | 19 Inch | ||
| Display Area | 376.32 mm.(Height) X 301.06(Width)mm. | |||
| Aspect Ratio | 4 : 3 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1280 X 1024 | |||
| Display Color | 16.7m , 73% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 1000 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 14ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 436.5 X 364.5 X 56.7 mm. | ||
| Net Weight | 6.5 Kilogram | |||
| Package Size | 52 X 44 X 15 Centimeter | |||
| Gross Package Weight per Unit | 7 Kilogram | |||
In the medical field, this display excels as a diagnostic tool for use in healthcare monitoring and patient management systems. The monitor’s high resolution and color accuracy make it ideal for displaying medical imaging, patient records, or real-time health data. Its compact yet clear visual output ensures that crucial details can be easily interpreted, from medical charts to X-ray images, especially in settings like hospitals, clinics, and medical research labs. The rugged build and long operational lifespan (up to 60,000 hours) make it dependable for 24/7 healthcare environments, where reliability and clarity are vital for quick decision-making.
Furthermore, the 19-inch integrated Linux monitor finds significant use in industrial and corporate environments for data visualization, monitoring systems, and equipment control. Whether used in production lines, warehouse management, or energy consumption monitoring, the system’s powerful processing capabilities—coupled with Wi-Fi and Ethernet connectivity—allow seamless integration with other technologies. Its compact design and multi-format media support (including video, audio, and images) make it adaptable for applications like real-time monitoring dashboards, remote control panels, and maintenance diagnostics, ensuring optimal operation in smart factories and automated systems.
