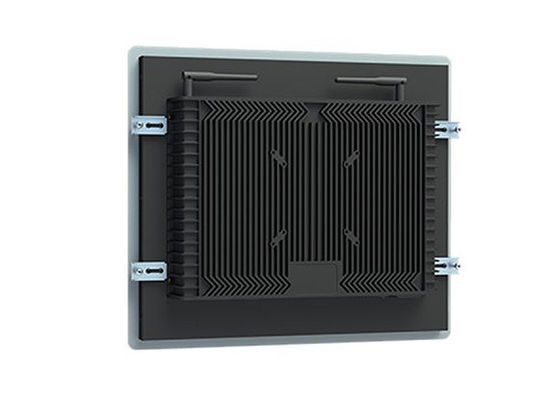

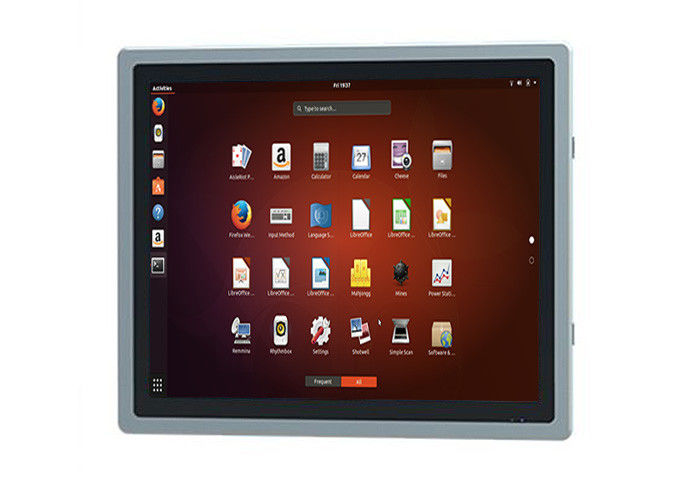

17-Inch Durable Linux Monitor for Security Systems and Industrial Operations

17-Inch Durable Linux Monitor for Security Systems and Industrial Operations

  • 17-Inch Durable Linux Monitor for Security Systems and Industrial Operations
  • 17-Inch Durable Linux Monitor for Security Systems and Industrial Operations
17-Inch Durable Linux Monitor for Security Systems and Industrial Operations
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E170WLSWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 17.0 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

17-Inch Durable Linux Monitor for Security Systems and Industrial Operations

The 17-inch Linux monitor offers a versatile and durable solution ideal for security systems in commercial and industrial settings. With a resolution of 1280 x 1024 and a 1200:1 contrast ratio, it provides crisp, high-definition visuals, making it perfect for surveillance cameras, alarm systems, and real-time monitoring. Security professionals can rely on its wide viewing angles (89° in all directions), allowing clear visibility from multiple positions. The built-in stereo speakers offer loud and clear audio alerts, ensuring operators stay informed of any potential threats or alarms, even in noisy environments. Its robust build and long lifespan (up to 60,000 hours) ensure that it remains functional in demanding, 24/7 environments.

LCD Panel ParametersScreen Size17 Inch
Display Area337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7M , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time20ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions400.6 X 338.6 X 56.7 mm.
Net Weight5.5 Kilogram
Package Size48 X 39 X 17 Centimeter
Gross Package Weight per Unit6 Kilogram


In addition to security applications, the 17-inch monitor is ideal for industrial operations, including machine control, automated systems monitoring, and factory dashboards. Its compact size fits perfectly in control rooms or workstations where space is at a premium. The powerful Intel i5 processor (up to 3.2GHz) and integrated Intel HD graphics provide the processing power required to handle complex industrial applications, such as data visualizations, equipment status tracking, or real-time analytics. Moreover, its network connectivity via Ethernet and Wi-Fi integration allows seamless communication with other devices, ensuring that it can act as the central hub in a fully integrated industrial system.
17-Inch Durable Linux Monitor for Security Systems and Industrial Operations 017-Inch Durable Linux Monitor for Security Systems and Industrial Operations 117-Inch Durable Linux Monitor for Security Systems and Industrial Operations 217-Inch Durable Linux Monitor for Security Systems and Industrial Operations 317-Inch Durable Linux Monitor for Security Systems and Industrial Operations 417-Inch Durable Linux Monitor for Security Systems and Industrial Operations 5
This flexible 17-inch monitor also serves a wide range of applications in medical monitoring and smart building systems. In healthcare, it can be used to display patient vitals, medical imaging, or nurse call systems, providing a reliable interface for doctors and nurses to monitor critical health data. In smart buildings, the monitor can display environmental data, such as temperature, humidity, and energy usage, contributing to efficient building management. The monitor's rugged design and ability to function within a wide temperature range make it an excellent choice for various industries that require reliable, real-time displays in harsh conditions. Its versatility, combined with Wi-Fi and Ethernet support, ensures that it is well-suited for any application where clarity and durability are essential.
