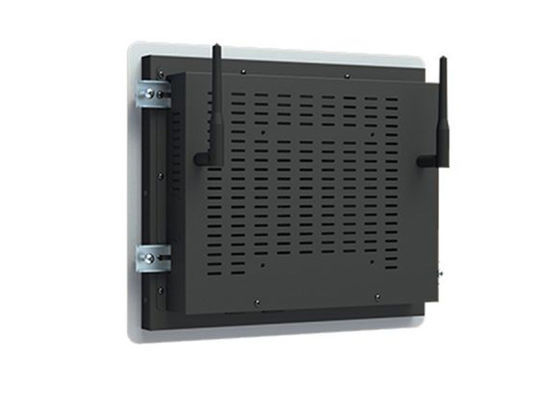

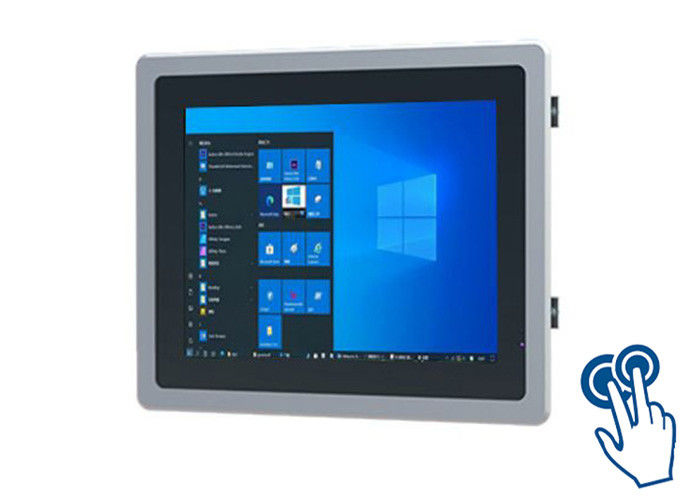

10.4-Inch Embedded Windows Touch Screen for Industrial HMI Panels and Automation Systems

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-E104WPCTS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight cases are optional
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	10.4 Inch	Aspect Ratio:	16:9
Brightness:	400 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

10.4-Inch Embedded Windows Touch Screen for Industrial HMI Panels and Automation Systems

LCD Panel Parameters	Screen Size	10.4 Inch
	Display Area	211.2 mm.(Height) X 158.4(Width)mm.
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	800 X 600
	Display Color	16.7M
	Brightness	400cd/m²
	Contrast Ratio	700 : 1
	Viewing Angle (Up/Down/Left/Right)	80°/80°/70°/70° (Type)(CR≥10)
	Response Time	30ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Capacitive Touchscreen Capacitive Projected
	Touch Points	10 Points
	Cover Glass	Morse Glass Size 7 Physically reinforced to prevent explosion
	Cover Glass	Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Audio parameters	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Internal computer configuration (Choose one of two)	CPU	Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz
	Graphics Card	Integrated Graphics Card Intel® HD 4600
	RAM	4GB
	Storage Memory Capacity	128GB
	OS	Win10 or win11 Optional
	Wi-Fi Built-in	Speed 150Mbps 802.11n wifi Integrated
Media Format	Video Format	wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
	Audio Format	MP3, WMA
	Photo Format	BMP, JPEG, PNG, GIF etc.
Onboard Interface	Network port	RJ45 X 1, 10M/100M Adjustable Ethernet
	HDMI	1
	USB	4
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 15 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
Features	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	281.1 X 231.1 X 50 mm.
	Net Weight	2 Kilogram
	Package Size	33.5 X 18.5 X 15 Centimeter
	Gross Package Weight per Unit	2.5 Kilogram
