Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E104WPB |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 10.4 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

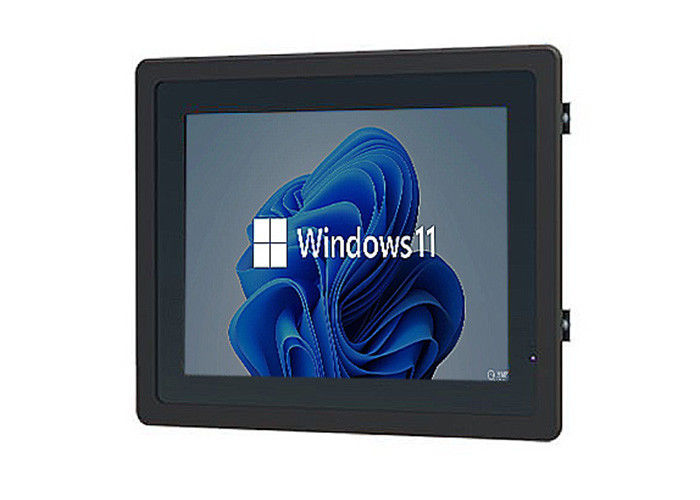

The 10.4-inch Windows display is a compact and powerful solution for industrial dashboards and HMI (Human-Machine Interface) systems. With a resolution of 800 x 600 pixels and a brightness of 400cd/m², it offers clear visibility in challenging industrial environments, ensuring that operators can monitor critical machinery and equipment efficiently. This screen is perfect for applications such as control panels and monitoring systems in factories, assembly lines, and manufacturing plants. Its 700:1 contrast ratio ensures excellent visibility of data and alerts, while the wide temperature tolerance (0°C to 50°C) guarantees reliability even in harsh working conditions.
| LCD Panel Parameters | Screen Size | 10.4 Inch | |
| Display Area | 211.2 mm.(Height) X 158.4(Width)mm. | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 800 X 600 | ||
| Display Color | 16.7M | ||
| Brightness | 400cd/m² | ||
| Contrast Ratio | 700 : 1 | ||
| Viewing Angle (Up/Down/Left/Right) | 80°/80°/70°/70° (Type)(CR≥10) | ||
| Response Time | 30ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | ||
| Field Frequency | 60Hertz | ||
| Audio parameters | Audio system | Stereo | |
| Speaker size | ≈ 99 x 45 x 20 mm | ||
| Impedance | 8 Ohm | ||
| Power | 2 x 5 Watt | ||
| Loudness | > 80 Decibel | ||
| Interface | 4-pin connector | ||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | ||
| RAM | 4GB | ||
| Storage Memory Capacity | 128GB | ||
| OS | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | |
| Audio Format | MP3, WMA | ||
| Photo Format | BMP, JPEG, PNG, GIF etc. | ||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | |
| HDMI | 1 | ||
| USB | 4 | ||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | |
| Maximum Power Loss | ≤ 15 Watt | ||
| Standby Mode Power Loss | < 1 Watt | ||
| Features | Operating Temperature | 0℃ ~ 50℃ | |
| Storage Temperature | Below 10℃ ~ +60℃ | ||
| Package Size | Device Dimensions | 281.1 X 231.1 X 50 mm. | |
| Net Weight | 2 Kilogram | ||
| Package Size | 33.5 X 18.5 X 15 Centimeter | ||
| Gross Package Weight per Unit | 2.5 Kilogram | ||
Designed with rugged performance in mind, this 10.4-inch display also serves as an ideal interface for automated systems in sectors like transportation and logistics. Whether for vehicle control systems, fleet management dashboards, or warehouse automation, the screen provides critical real-time updates in a format that's both easy to read and interact with. Its multiple USB ports and HDMI input allow for seamless integration with a variety of industrial devices, making it a versatile choice for connecting to sensors, scanners, or other equipment. The integrated Wi-Fi connectivity (150Mbps) allows for remote monitoring and data access, enhancing operational efficiency and control.
In addition to industrial use, this Windows-based display is well-suited for embedded systems in medical devices or building automation. It can be integrated into diagnostic equipment or patient monitoring systems, offering an intuitive interface for medical staff to access real-time health data and patient information. Additionally, its compact form factor makes it an ideal choice for smart building solutions where space is limited. Whether controlling lighting, heating, or security systems, the display ensures smooth communication and control with clear visuals and fast response times. With low power consumption (≤15W), this display is also an energy-efficient solution for long-term use in all these applications.
