Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E104WPS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 10.4 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

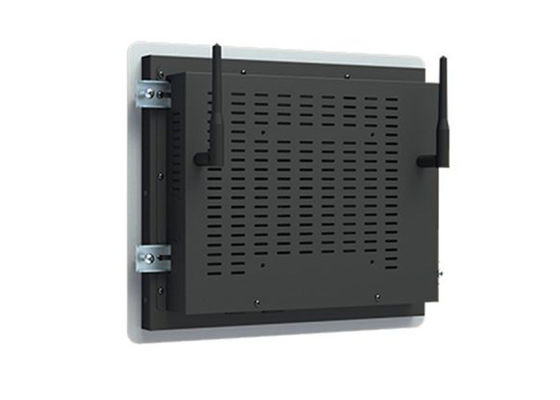

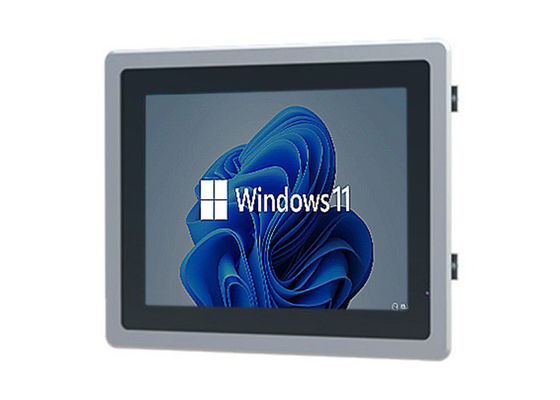

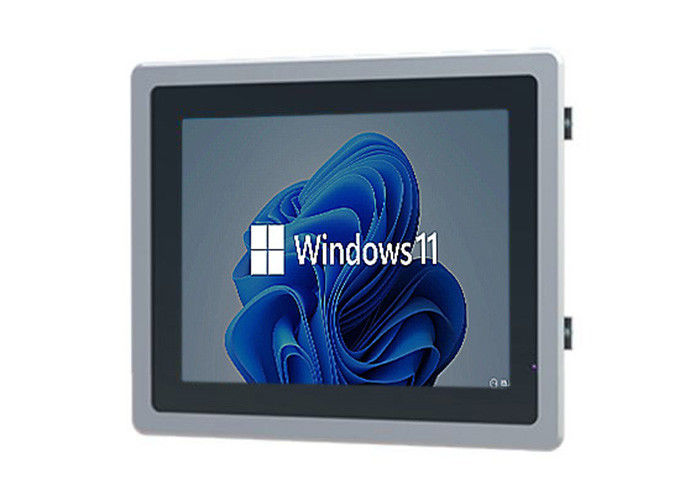

The 10.4-inch Windows display provides a high-performance solution for industrial dashboards and human-machine interface (HMI) systems. With a clear resolution of 800 x 600 pixels and a brightness of 400cd/m², this display ensures optimal visibility even in environments with intense ambient lighting. This screen is ideal for monitoring control panels, machinery systems, or production line setups, where real-time data visualization is critical. Its 16.7 million colors and 700:1 contrast ratio allow for easy viewing of detailed metrics, alerts, and operational data, improving productivity and operational safety in factories, power plants, and automation hubs. The wide temperature tolerance (from 0°C to 50°C) ensures reliable performance in challenging industrial conditions.
| LCD Panel Parameters | Screen Size | 10.4 Inch | |
| Display Area | 211.2 mm.(Height) X 158.4(Width)mm. | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 800 X 600 | ||
| Display Color | 16.7M | ||
| Brightness | 400cd/m² | ||
| Contrast Ratio | 700 : 1 | ||
| Viewing Angle (Up/Down/Left/Right) | 80°/80°/70°/70° (Type)(CR≥10) | ||
| Response Time | 30ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | ||
| Field Frequency | 60Hertz | ||
| Audio parameters | Audio system | Stereo | |
| Speaker size | ≈ 99 x 45 x 20 mm | ||
| Impedance | 8 Ohm | ||
| Power | 2 x 5 Watt | ||
| Loudness | > 80 Decibel | ||
| Interface | 4-pin connector | ||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | ||
| RAM | 4GB | ||
| Storage Memory Capacity | 128GB | ||
| OS | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | |
| Audio Format | MP3, WMA | ||
| Photo Format | BMP, JPEG, PNG, GIF etc. | ||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | |
| HDMI | 1 | ||
| USB | 4 | ||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | |
| Maximum Power Loss | ≤ 15 Watt | ||
| Standby Mode Power Loss | < 1 Watt | ||
| Features | Operating Temperature | 0℃ ~ 50℃ | |
| Storage Temperature | Below 10℃ ~ +60℃ | ||
| Package Size | Device Dimensions | 281.1 X 231.1 X 50 mm. | |
| Net Weight | 2 Kilogram | ||
| Package Size | 33.5 X 18.5 X 15 Centimeter | ||
| Gross Package Weight per Unit | 2.5 Kilogram | ||
In addition to its industrial applications, this 10.4-inch screen excels in automated systems across various sectors, such as transportation, logistics, and warehouse management. Its integrated Wi-Fi functionality makes it an excellent choice for fleet management systems, vehicle control panels, or smart logistics terminals, where real-time communication and monitoring are essential. The screen's versatile USB and HDMI connectivity ensures that it can easily be connected to different devices, such as barcode scanners, RFID readers, and sensor systems, enhancing operational efficiency and reducing downtime. Whether used for automated tracking systems or managing robotic operations, this compact display ensures seamless interaction with machinery and equipment.
Furthermore, this Windows-based screen serves as a perfect solution for use in medical equipment, security systems, and building automation controls. Its compact size and low power consumption (≤15W) make it an excellent choice for patient monitoring systems, where it provides medical professionals with real-time updates and easy-to-read diagnostics. In smart buildings, it can be integrated into HVAC systems, security panels, or lighting controls, offering a user-friendly interface for managing complex systems. Whether in healthcare facilities, security control rooms, or automated commercial buildings, the 10.4-inch display provides an intuitive, efficient way to manage and monitor critical systems, all while operating efficiently with low energy consumption.
