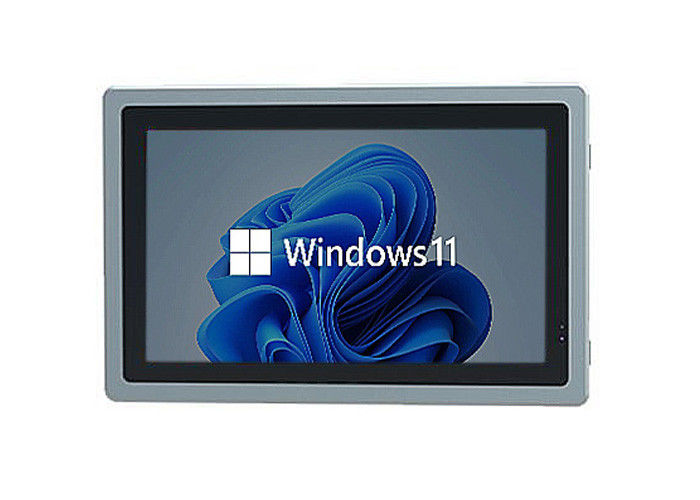

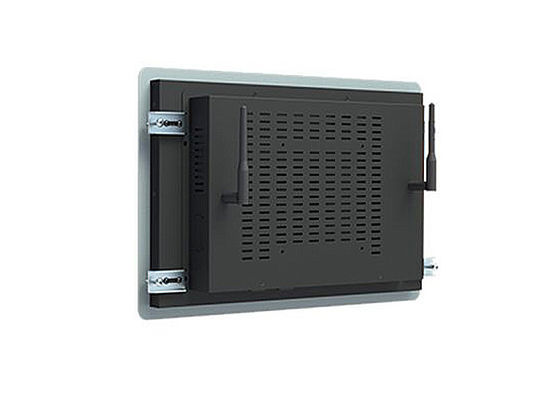

13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces

13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces

  • 13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces
  • 13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces
13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E133WPS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 13.3 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces

The 13.3-inch compact Windows monitor is designed to enhance user experiences in retail environments by delivering high-quality visuals in a compact form factor. With its Full HD resolution (1920x1080), this monitor is perfect for advertising displays, digital signage, and point-of-sale (POS) systems. The display’s 220 cd/m² brightness ensures clear and visible content, even in well-lit areas like shopping malls or supermarkets. Its wide viewing angles of 85° on all sides make it ideal for applications where customers or passersby need to view the screen from various angles, such as queue management displays or interactive kiosks. This small yet powerful monitor can easily integrate into custom fixtures or customer-facing devices, providing seamless interaction and engagement.

LCD Panel ParametersScreen Size13.3 Inch
Display Area293.76 mm.(Height) X 165.24(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1920 X 1080
Display Color262K, 45% NTSC
Brightness220cd/m²
Contrast Ratio800 : 1
Viewing Angle (Up/Down/Left/Right)85°/85°/85°/85° (Type)(CR≥10)
Response Time30ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 25 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions359.9 X 233.9 X 50 mm.
Net Weight3 Kilogram
Package Size42 X 29 X 15Centimeter
Gross Package Weight per Unit4 Kilogram


In addition to its application in retail, this monitor serves as an excellent choice for public-facing interfaces in high-traffic locations like airports, train stations, and conference rooms. With the ability to display dynamic content, including videos, wayfinding maps, and interactive information, it is an essential tool for modern digital signage systems. The Intel processor combined with Windows 10 or 11 makes it compatible with various software platforms, allowing for smooth integration with content management systems or advertising networks. Additionally, the built-in Wi-Fi and Ethernet ports enable seamless connectivity for real-time content updates, making it easy to manage displays remotely. The low power consumption ensures this monitor operates efficiently, even for extended periods, reducing operational costs for businesses.
13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces 0
13.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces 113.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces 213.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces 313.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces 413.3-Inch Compact Windows Monitor for Retail Displays and Public Interfaces 5
The 13.3-inch monitor also proves valuable in corporate environments, particularly in conference rooms or as part of collaboration systems. Its compact design makes it a great choice for digital whiteboards, video conferencing tools, and presentation systems. Whether it's for virtual meetings or managing project timelines, this monitor offers excellent image clarity with its high contrast ratio and vibrant colors. The multiple input ports, including USB and HDMI, ensure easy connection to a variety of devices, including laptops, tablets, and presentation hardware. Its integration with Windows operating systems and the built-in Intel graphics card means it can smoothly handle office applications, video calls, and content sharing, making it an indispensable tool for businesses looking to modernize their tech stack and streamline collaboration.
