Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E156WPS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|

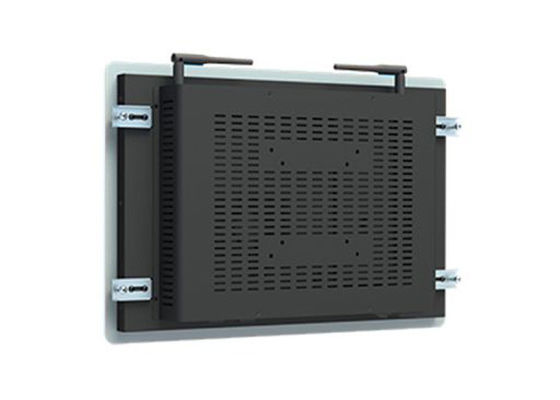

| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

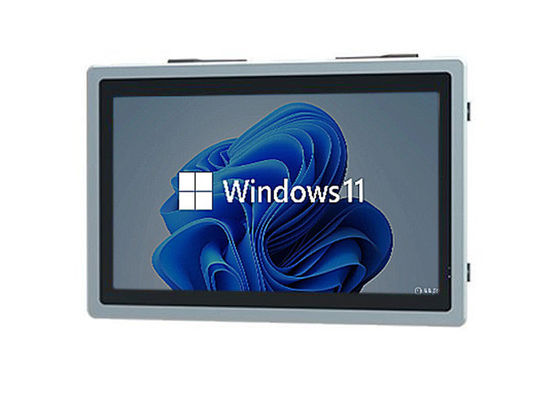

The 15.6-inch integrated Windows display is designed for use in factory control panels and industrial automation systems, where reliable, high-resolution monitors are essential for real-time data monitoring and control. With a Full HD resolution (1920x1080) and 250 cd/m² brightness, it offers clear and vibrant visuals, ensuring operators can easily view system diagnostics, production data, and machine statuses in high-ambient light environments. The wide viewing angles (89° in all directions) make it perfect for HMI interfaces, allowing multiple team members to interact with the system from different positions. Its built-in Wi-Fi and Ethernet connectivity enable seamless integration into factory networks for real-time monitoring, making it ideal for smart factories and automated industrial operations.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 403.9 X 263.9X 50mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 47 X 33 X 15Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
Additionally, the 15.6-inch display excels in smart systems and IoT solutions. Whether used in smart homes, building automation, or office management systems, its compact design and powerful features allow it to act as an interactive hub for controlling and monitoring various systems. The Intel i5 processor and Windows OS compatibility ensure smooth performance for tasks such as managing heating, lighting, security systems, and energy consumption. The integration of Ethernet and Wi-Fi capabilities supports remote management and control, while the HDMI and USB ports provide flexible connectivity for additional devices, making this monitor ideal for smart home control panels, surveillance systems, and energy-efficient buildings.
In educational environments, this 15.6-inch integrated display can be used as a versatile tool for e-learning, training stations, and interactive kiosks. With its ability to display instructional content, videos, and simulations in Full HD, it provides an engaging experience for students and trainees alike. The built-in stereo speakers offer enhanced audio output, perfect for multimedia lessons and interactive learning applications. Its rugged build and long-lasting performance (up to 60,000 hours) make it a reliable choice for environments where the display is used frequently. Whether in vocational training or corporate education programs, this display helps deliver clear, high-quality visual content to facilitate learning in diverse settings.
