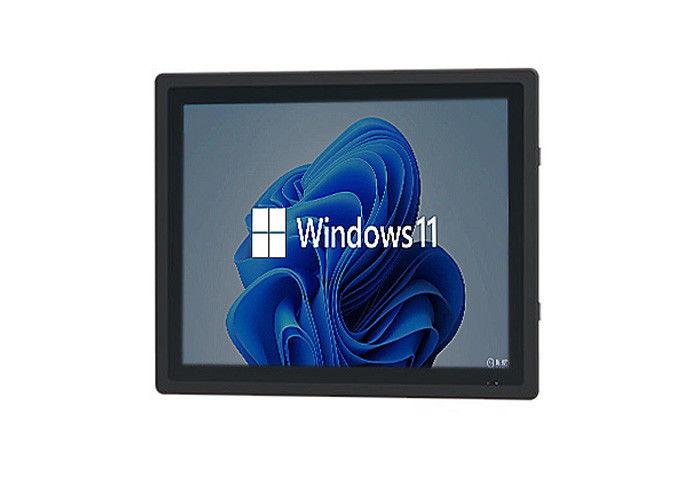

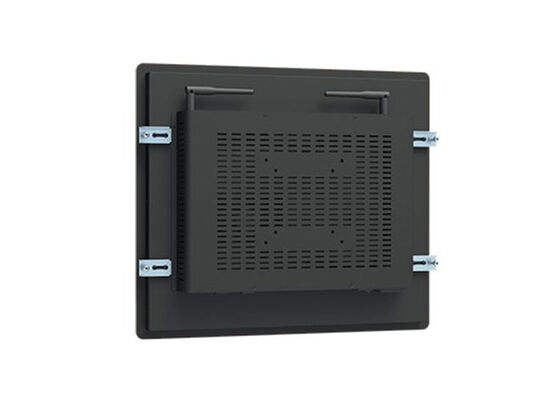

17-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring

17-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring

  • 17-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring
  • 17-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring
17-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E170WPB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 17.0 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

17-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring

The 17-inch versatile Windows display is a powerful and flexible solution for industrial equipment in sectors like manufacturing, logistics, and factory automation. With a maximum resolution of 1280x1024 and 250 cd/m² brightness, it ensures clear visuals for operators working in bright or dim environments. The 1200:1 contrast ratio allows for high-definition, detailed images, making it ideal for tasks like machine monitoring, production line supervision, and control systems where clarity and precision are essential. Featuring Wi-Fi and Ethernet connectivity, the system supports integration into networked environments, providing real-time data access and seamless communication between devices. Whether managing heavy-duty equipment or monitoring real-time production data, this display enhances operational efficiency.

LCD Panel ParametersScreen Size17 Inch
Display Area337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7M , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time20ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions400.6 X 338.6 X 50 mm.
Net Weight5.5 Kilogram
Package Size48 X 39 X 15 Centimeter
Gross Package Weight per Unit6 Kilogram


This 17-inch display is equally suited for security monitoring systems, offering a high-resolution, durable interface for surveillance operations in various environments. With its wide viewing angles and vivid color reproduction, it's perfect for displaying feeds from multiple cameras in control rooms or at security checkpoints. Its built-in stereo speakers can also be used for audio alerts or notifications, ensuring that critical events are noticed immediately. The device is designed to operate continuously, with a long lifespan of up to 60,000 hours, making it ideal for 24/7 use in public safety and military operations. This makes the display a reliable option for security hubs, traffic monitoring, and high-risk surveillance zones where security is paramount.

17-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring 017-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring 117-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring 217-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring 317-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring 417-Inch Versatile Windows Screen for Industrial Equipment and Security Monitoring 5
In interactive kiosks and digital signage, the 17-inch monitor offers a dynamic display solution for businesses aiming to engage customers and deliver targeted information. Whether used in retail, transportation hubs, or hotel lobbies, this screen provides a robust, user-friendly interface for showing multimedia content, advertisements, wayfinding systems, or real-time updates. Its support for various media formats, including video, audio, and images, enhances the user experience, allowing businesses to create immersive and informative content. Its compact design makes it versatile enough for wall mounts or counter-top setups, allowing it to fit seamlessly into both small and large spaces. This display helps elevate customer interaction and engagement across diverse industries, from marketing to information dissemination.
