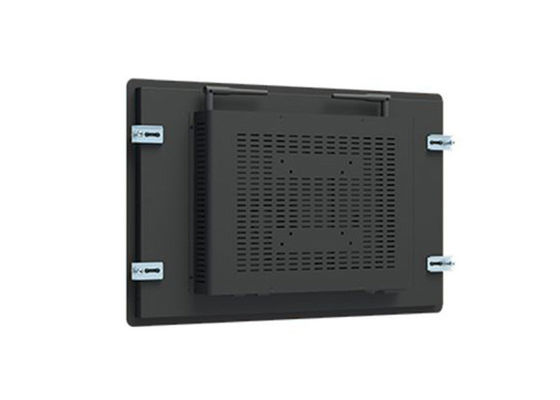

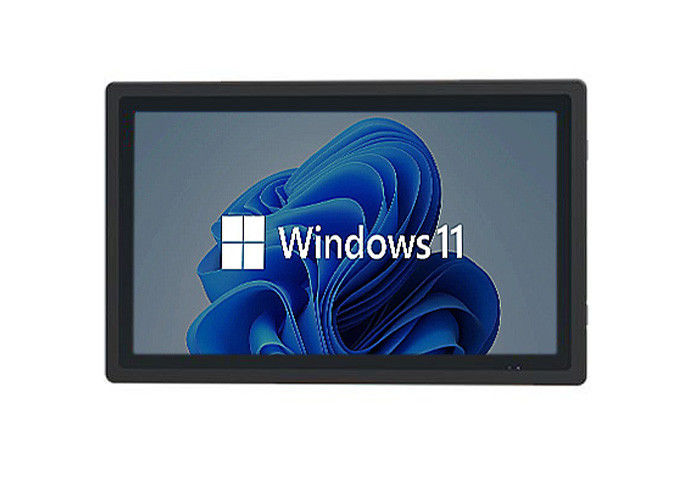

18.5-Inch Windows Monitor for Logistics Applications and Information Panels

18.5-Inch Windows Monitor for Logistics Applications and Information Panels

  • 18.5-Inch Windows Monitor for Logistics Applications and Information Panels
  • 18.5-Inch Windows Monitor for Logistics Applications and Information Panels
18.5-Inch Windows Monitor for Logistics Applications and Information Panels
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E185WPB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 18.5 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

18.5-Inch Windows Monitor for Logistics Applications and Information Panels

The 18.5-inch Windows monitor is an excellent choice for logistics and warehouse operations, providing clear and precise visuals for managing goods and inventory in real-time. With a full HD resolution of 1920x1080, this display ensures that data, such as shipment tracking, stock levels, and inventory management, is easy to read and interpret. The wide viewing angle and high contrast ratio make it suitable for use in environments with varying light conditions, such as shipping docks or loading bays. With integrated Wi-Fi and multiple USB and Ethernet ports, it is seamlessly compatible with the software systems used in modern logistics management, enabling efficient tracking and communication within the supply chain.

LCD Panel ParametersScreen Size18.5 Inch
Display Area409.8 mm.(Height) X 230.4(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1920 X 1080
Display Color16.7m , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions470.9 X 294.9 X 50mm
Net Weight6.5 Kilogram
Package Size55 X 38 X 15Centimeter
Gross Package Weight per Unit7 Kilogram


This 18.5-inch display also proves to be invaluable in information panels within public spaces such as transportation hubs, shopping malls, or corporate offices. Offering high brightness and vibrant color reproduction, it can clearly display digital signage, wayfinding maps, and public announcements. Whether used to deliver real-time information about flight schedules, store promotions, or traffic updates, the monitor excels in high-traffic areas where clear visibility is essential. Its compact design and power-efficient performance make it a versatile solution for both indoor and outdoor settings, capable of withstanding extended usage in public environments.

18.5-Inch Windows Monitor for Logistics Applications and Information Panels 018.5-Inch Windows Monitor for Logistics Applications and Information Panels 118.5-Inch Windows Monitor for Logistics Applications and Information Panels 218.5-Inch Windows Monitor for Logistics Applications and Information Panels 318.5-Inch Windows Monitor for Logistics Applications and Information Panels 418.5-Inch Windows Monitor for Logistics Applications and Information Panels 5
Moreover, the 18.5-inch Windows display serves a key role in kiosk systems for customer interaction and self-service applications. Whether for ticket vending machines, interactive ordering systems in restaurants, or automated check-in stations in hotels, this monitor is engineered to handle the demands of constant touch interaction. The responsive interface and robust performance with options for Win10/11 and high RAM capacity ensure that the system can run efficiently, delivering instant responses to customer requests. Its ease of integration, with multiple connection interfaces such as HDMI and USB, makes it a highly adaptable solution for various self-service kiosks across diverse industries, enhancing customer experience and operational efficiency.
