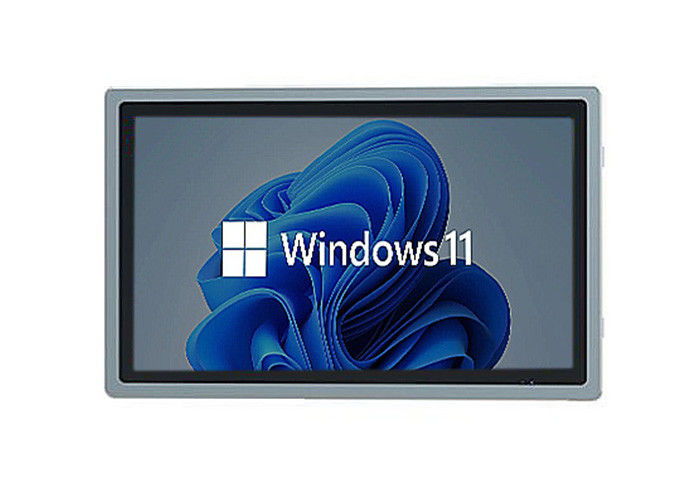

18.5-Inch Windows Monitor for Logistics Applications and Information Panels

18.5-Inch Windows Monitor for Logistics Applications and Information Panels

  • 18.5-Inch Windows Monitor for Logistics Applications and Information Panels
  • 18.5-Inch Windows Monitor for Logistics Applications and Information Panels
18.5-Inch Windows Monitor for Logistics Applications and Information Panels
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E185WPS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 18.5 Inch Aspect Ratio: 16:9

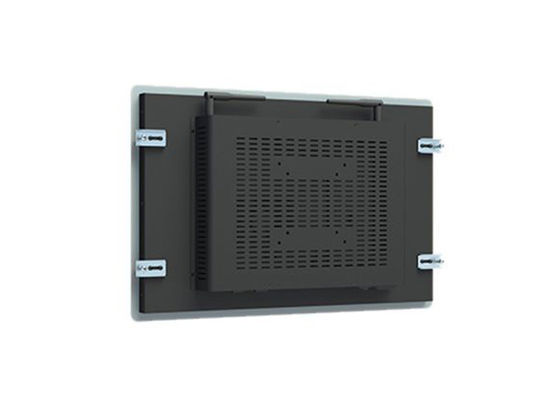

Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

18.5-Inch Windows Monitor for Logistics Applications and Information Panels

The 18.5-inch Windows monitor is an ideal solution for logistics management in busy warehouses and industrial environments, where real-time data accuracy is critical. Its full HD resolution (1920x1080) offers crystal-clear visibility of important information like inventory levels, shipment tracking, and order statuses. The wide viewing angles and high contrast ratio ensure that data is easily accessible from various positions, which is essential when managing large operations. With integrated Wi-Fi, Ethernet, and multiple USB ports, this monitor supports seamless communication with other systems, enhancing workflow and efficiency across the supply chain. Its compact design allows it to be mounted in space-constrained areas, ensuring that valuable floor space is optimized.

LCD Panel ParametersScreen Size18.5 Inch
Display Area409.8 mm.(Height) X 230.4(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1920 X 1080
Display Color16.7m , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions470.9 X 294.9 X 50mm
Net Weight6.5 Kilogram
Package Size55 X 38 X 15Centimeter
Gross Package Weight per Unit7 Kilogram


This 18.5-inch display also excels as an information panel in public spaces like transportation hubs, retail environments, and malls. It can display real-time information such as schedules, directions, or promotions in a clear, engaging manner. With a bright display (250cd/m²), even areas with high ambient light won't affect visibility, making it suitable for indoor and semi-outdoor use. Whether used in digital signage for customer engagement or wayfinding systems to guide people through large venues, its versatile performance ensures that the right information is delivered at the right time. The unit’s low power consumption makes it environmentally friendly, while its robust build ensures it withstands the demands of continuous use in busy, high-traffic environments.

18.5-Inch Windows Monitor for Logistics Applications and Information Panels 018.5-Inch Windows Monitor for Logistics Applications and Information Panels 118.5-Inch Windows Monitor for Logistics Applications and Information Panels 218.5-Inch Windows Monitor for Logistics Applications and Information Panels 318.5-Inch Windows Monitor for Logistics Applications and Information Panels 418.5-Inch Windows Monitor for Logistics Applications and Information Panels 5
In interactive kiosks and self-service terminals, this 18.5-inch monitor becomes a user-friendly interface for customer interaction. Whether it's for ticketing, order placing, or check-in services, the screen’s responsive touch capabilities (with its 14ms response time) ensure a smooth, efficient customer experience. Its powerful internal configuration with Intel i5 processor, 8GB RAM, and 256GB storage can handle a variety of software applications, making it a flexible solution for businesses seeking to enhance customer engagement. From banking kiosks to restaurant self-ordering stations, this monitor integrates easily into various automated systems, improving operational efficiency while providing a seamless user experience.
