Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E215WPS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 21.5 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

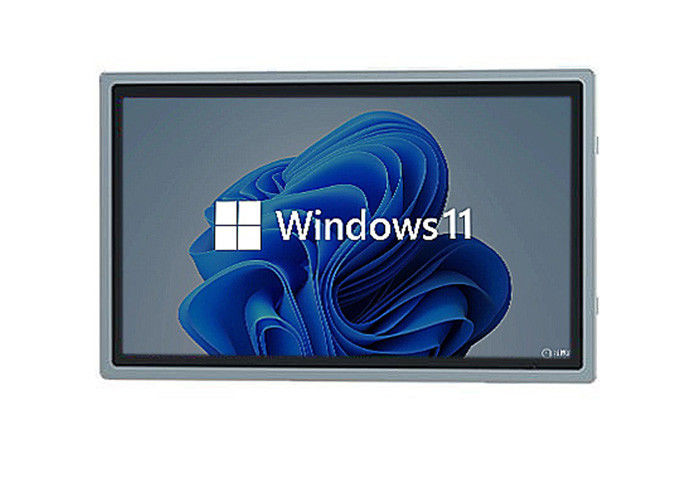

The 21.5-inch high-definition Windows monitor serves as a powerful solution for digital signage applications in various public and business environments. With its 1080p resolution and 16:9 aspect ratio, this display excels in delivering clear, vibrant visuals for advertisements, promotions, and wayfinding systems in places like shopping malls, airports, and train stations. Its high brightness of 250cd/m² ensures content visibility even in brightly lit spaces, while the wide viewing angles of 89° in all directions allow viewers from different angles to experience sharp, vivid content. This versatility makes it ideal for creating engaging, high-impact signage that attracts attention and enhances customer experiences in high-traffic areas.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.5 mm (Height) X 268 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 535.9 X 332.5 X 49.95 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 62 X 42 X 15Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
For industrial applications, the 21.5-inch monitor is equally efficient in manufacturing plants, control rooms, and warehouse management systems. Its high contrast ratio and quick response time make it perfect for displaying real-time data, system diagnostics, and other critical information. The integrated audio system is also a valuable feature for alert notifications, while the device's rugged construction ensures it can operate under harsh conditions, maintaining functionality even in temperatures ranging from 0℃ to 50℃. Whether it's for process monitoring or machine control, this display serves as a reliable tool for maintaining operational efficiency and improving productivity in demanding environments.
Additionally, this 21.5-inch monitor is well-suited for corporate applications like conference rooms, video conferencing, and employee training stations. With its HD resolution and seamless integration with Windows OS, it delivers clear presentations, video calls, and collaborative content for effective business communication. Its Wi-Fi connectivity and diverse media support (including video, audio, and image formats) enable a smooth content-sharing experience without the need for additional hardware. The monitor's compact design allows for flexible placement in various office settings, while its ability to handle up to 256GB of storage and run on Windows 10 or 11 makes it a versatile tool for modern business environments, enhancing both internal operations and client-facing presentations.
