Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E133WLS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 13.3 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

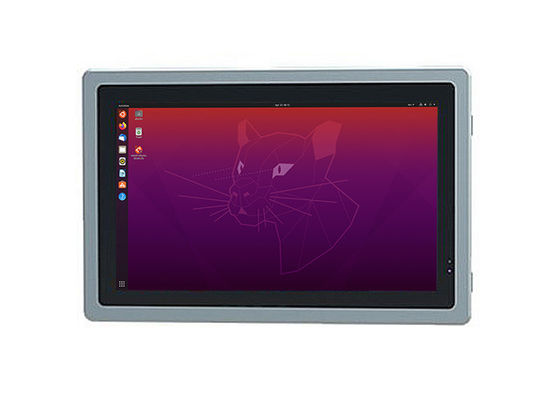

The 13.3-inch slim Linux display is a versatile solution tailored for modern retail interfaces, enabling a seamless interaction between customers and the store environment. Its high-definition 1920 x 1080 resolution ensures that promotional content, product catalogs, and advertisements appear sharp and vibrant on the screen. Ideal for point-of-sale terminals, self-service kiosks, and interactive display stands, this monitor enhances customer engagement by delivering clear visuals in a compact form factor. With Wi-Fi connectivity, it supports real-time updates for pricing, promotions, and inventory tracking, allowing businesses to manage content dynamically. Its low power consumption of less than 25 watts ensures cost-efficient operation, which is crucial for high-volume retail environments that rely on continuous digital displays.
LCD Panel Parameters | Screen Size | 13.3 Inch | ||
Display Area | 293.76 mm.(Height) X 165.24(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 262K, 45% NTSC | |||
Brightness | 220cd/m² | |||
Contrast Ratio | 800 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 85°/85°/85°/85° (Type)(CR≥10) | |||
Response Time | 30ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 25 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 359.9 X 233.9 X 50 mm. | ||
Net Weight | 3 Kilogram | |||
Package Size | 42 X 29 X 15Centimeter | |||
Gross Package Weight per Unit | 4 Kilogram |
In the realm of public information systems, the 13.3-inch slim monitor proves invaluable for applications such as wayfinding kiosks, transit information boards, and public service displays. Its bright 220 cd/m² brightness and wide viewing angles ensure that information remains visible even in high-traffic, brightly lit areas such as malls, airports, or train stations. The integrated Intel processor with Wi-Fi capabilities allows for remote management of content, making it easy to update schedules, emergency alerts, or wayfinding data across multiple devices. With HDMI and USB ports for easy connectivity, it integrates effortlessly into existing digital signage networks, providing a robust platform for delivering time-sensitive information to the public.
The 13.3-inch Linux-powered monitor also finds applications in corporate environments where it serves as a smart, dynamic tool for digital signage in office lobbies, meeting rooms, and conference halls. With its compact form factor, this monitor is perfect for displaying agendas, corporate messages, or video conferencing systems. Its high contrast ratio of 800:1 ensures clarity in all lighting conditions, while the stereo speakers provide crisp audio for announcements or video presentations. Additionally, the Intel i5 processor and up to 8GB of RAM allow the system to handle video streaming and interactive content seamlessly, making it a great solution for high-traffic corporate environments that require reliable performance and smooth multimedia playback. Whether used for meeting room scheduling systems or displaying important internal announcements, this monitor provides a flexible and efficient display solution.
