Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E156WLS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

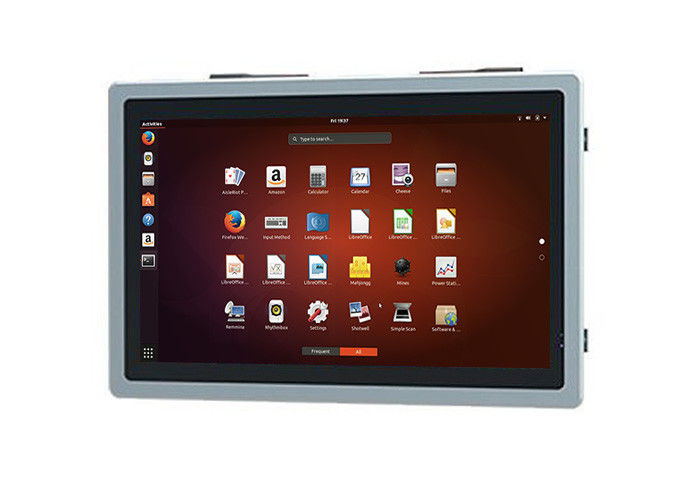

The 15.6-inch Linux display is engineered to provide reliable performance across a variety of demanding industrial environments. With its 1920x1080 resolution and 16.7 million colors, this high-performance monitor excels in applications like factory automation systems. Whether deployed for monitoring production lines, quality control, or real-time data visualization, the display ensures clear and precise images. The 250cd/m² brightness allows it to operate efficiently in well-lit factory settings, while the wide 89-degree viewing angle ensures that workers can access information from any angle, improving operational flexibility. Its long lifespan and low power consumption make it a cost-effective solution for long-term deployments in mission-critical settings, such as automated equipment diagnostics, process optimization, and system performance monitoring.
LCD Panel Parameters | Screen Size | 15.6 Inch | ||
Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7M , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 700 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 30ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ω | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 403.9 X 263.9X 50mm. | ||
Net Weight | 5 Kilogram | |||
Package Size | 47 X 33 X 15Centimeter | |||
Gross Package Weight per Unit | 5.5 Kilogram |
In logistics monitoring, the 15.6-inch monitor provides an essential tool for real-time tracking and warehouse management. The high contrast ratio and excellent color accuracy make it an ideal choice for applications that require precise visual representations, such as inventory management, asset tracking, and shipment monitoring. With Wi-Fi connectivity and multiple onboard interfaces, this display can integrate seamlessly into existing logistics infrastructure, allowing for dynamic communication and decision-making across warehouses, transport hubs, or retail environments. From loading docks to supply chain management, the versatile screen supports smooth integration with fleet management software, real-time stock level displays, and barcoding systems, helping businesses streamline operations, reduce human error, and improve overall efficiency.
Furthermore, the 15.6-inch precision display is highly suited for embedded computing applications in industrial machinery and equipment. This screen can be incorporated into robotic control panels, process control stations, and interactive kiosks to deliver vital operational information in real-time. The multi-functional design supports various video formats, including MP4, AVI, and WMV, making it adaptable for systems that require dynamic content or video feeds. Whether used for machine diagnostics, maintenance tracking, or real-time alert displays, this display provides a user-friendly interface that can enhance the performance of both factory automation systems and industrial monitoring stations. Its compatibility with both Windows 10 and 11 ensures it can easily integrate into existing software ecosystems, making it an ideal choice for modern, data-driven industrial environments.
