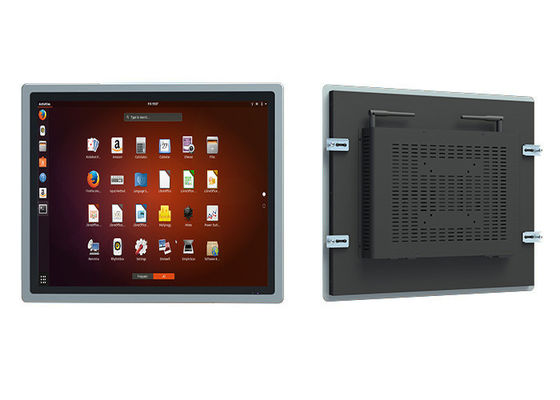

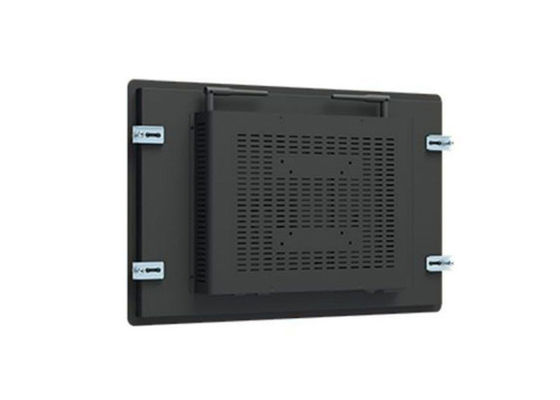

19-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces

19-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces

  • 19-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces
  • 19-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces
19-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E190WLS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 19.0 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

19-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces

The 19-inch high-performance display is ideally suited for access control panels in environments where security and precise visual feedback are paramount. The 1280 x 1024 resolution offers a crisp and clear display of user data such as card access systems, biometric scanners, or keypad systems, ensuring quick and reliable verification. Its wide viewing angle and high contrast ratio allow for easy readability from multiple positions, making it perfect for security desks or building entrances where multiple personnel might need to interact with the system simultaneously. Additionally, the integrated stereo audio system enhances user interaction by providing real-time audible notifications, ensuring an intuitive access management experience.

LCD Panel ParametersScreen Size19 Inch
Display Area376.32 mm.(Height) X 301.06(Width)mm.
Aspect Ratio4 : 3
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7m , 73% NTSC
Brightness250cd/m²
Contrast Ratio1000 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14Miss
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions436.5 X 364.5 X 50 mm.
Net Weight6.5 Kilogram
Package Size52 X 44 X 15 Centimeter
Gross Package Weight per Unit7 Kilogram


In medical environments, this high-resolution display shines by providing clear, detailed imagery for medical monitoring equipment and patient interfaces. Whether used in hospital rooms, examination areas, or diagnostic labs, the screen's 16.7 million colors and wide viewing angle ensure that medical professionals have accurate data for diagnosis and patient monitoring. This makes it ideal for use in patient monitoring stations, radiology rooms, and surgical suites, where real-time data visualization is critical. With its Intel i5 processor and 8GB RAM, it can easily handle demanding medical applications, while the long lifespan ensures it can withstand continuous use in high-stakes environments.

19-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces 019-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces 119-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces 219-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces 319-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces 419-Inch High-Performance Linux Display for Access Control Panels and Medical Interfaces 5
Furthermore, this 19-inch monitor excels in industrial and control systems. Its robust design and multi-interface options such as HDMI, USB, and Ethernet ports make it compatible with a wide variety of automated machinery, sensor systems, and robotics interfaces. Whether used for factory automation, assembly line monitoring, or machine control interfaces, the display provides operators with real-time feedback on critical system data, helping streamline production processes. The monitor’s wide operating temperature range and low power consumption make it especially suited for environments like warehouses, logistics hubs, and heavy machinery operations, ensuring reliable performance even in tough working conditions.
