Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E215WLS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 21.5 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

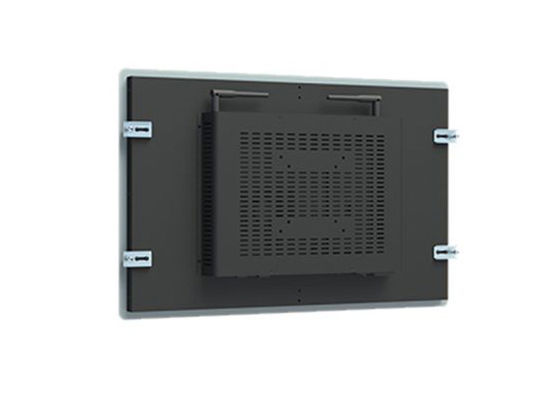

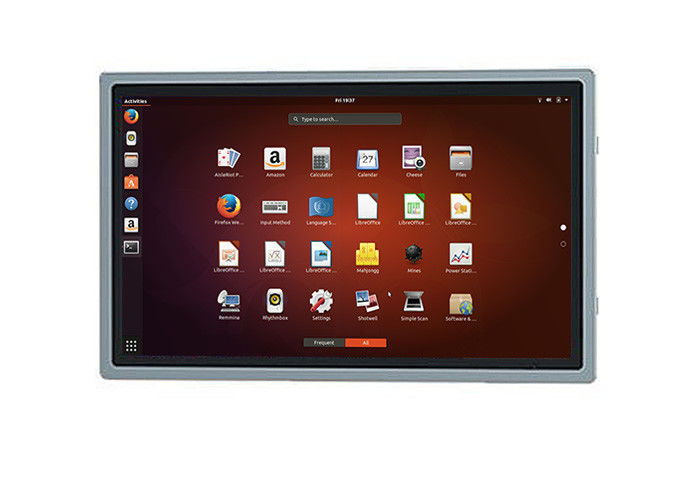

The 21.5-inch Linux-based display is designed to serve a wide range of applications in the smart city ecosystem, providing seamless integration into digital signage systems, public information displays, and interactive kiosks. With its full HD resolution (1920 x 1080) and vivid 16.7 million colors, it is perfect for displaying real-time data, advertisements, or public announcements in high-traffic areas like train stations, bus terminals, and shopping centers. The monitor’s high contrast ratio of 3000:1 ensures that content remains clear and engaging, even in areas with varying ambient lighting, while the wide viewing angles guarantee that the display remains visible from multiple directions. Additionally, the integrated audio system ensures that auditory information, like emergency alerts or promotions, is broadcast effectively in public spaces.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.5 mm (Height) X 268 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 535.9 X 332.5 X 49.95 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 62 X 42 X 15Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
This large-format 21.5-inch screen is ideal for retail environments where businesses seek to enhance customer engagement through dynamic content. Its 16:9 aspect ratio and fast response time of 6.5ms make it a powerful tool for digital signage, allowing retailers to show interactive product promotions, price updates, and special events. The built-in Wi-Fi and Ethernet connectivity allow seamless integration with content management systems for remote updates, making it easy to schedule and display time-sensitive promotions. With its energy-efficient power usage and low standby power loss, it is a cost-effective option for continuous operation in commercial settings, ensuring a long-lasting investment.
For transportation hubs and smart city infrastructure, the 21.5-inch display offers a perfect platform for displaying essential real-time information, such as bus schedules, flight updates, and wayfinding maps. Its robust build ensures it can withstand a range of environmental conditions, making it suitable for both indoor and outdoor applications. The screen’s adjustable Ethernet connection and USB ports provide flexibility in system integration, while the built-in speakers allow for broadcasting important messages in emergency situations or routine announcements. Whether placed in a subway station, airport terminal, or municipal building, this display excels at enhancing public communication and improving the flow of information within bustling urban environments.
