Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E156WLBWFS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

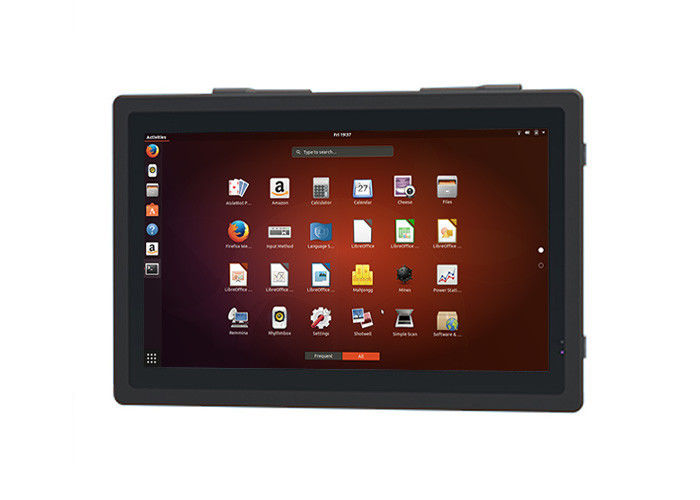

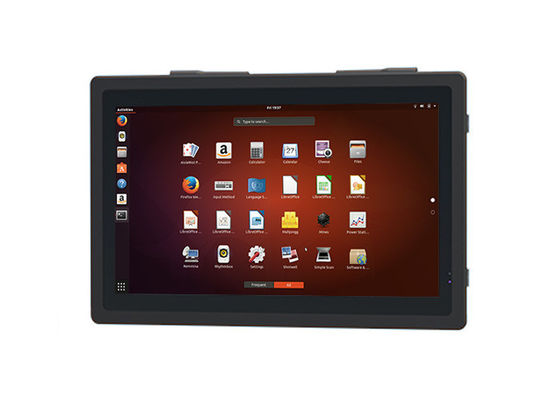

The 15.6-inch Linux-based monitor is an ideal choice for factory dashboards and logistics monitoring systems. Its compact form factor and full HD resolution (1920 x 1080) ensure that it fits seamlessly into tight spaces while delivering clear and crisp visuals for real-time production and logistics data. With its wide viewing angles (89°), operators and managers can access critical data from multiple angles, improving visibility and communication on the factory floor. Whether monitoring machine performance, inventory tracking, or production workflows, this display provides a reliable and consistent view of data streams, supporting efficient operations. The low power consumption and durable design ensure it remains operational in demanding industrial environments.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 403.9 X 263.9X 56.7mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 47 X 33 X 17Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
This 15.6-inch display offers significant benefits in automated production lines and supply chain monitoring. Its bright 250 cd/m² display ensures that crucial metrics, such as material handling, logistics tracking, and shipping statuses, are clearly visible even in the low-light conditions typical of industrial environments. With a contrast ratio of 700:1, data can be easily distinguished, making it perfect for applications where clarity is critical. Additionally, the device’s Wi-Fi integration and Ethernet connectivity allow for remote monitoring and management, making it an excellent choice for modern, connected factory systems. The built-in audio system also enhances operations by providing real-time alerts or notifications regarding inventory levels, equipment statuses, or production goals.
The 15.6-inch monitor is also well-suited for fleet management and warehouse logistics. By displaying important tracking data, real-time GPS coordinates, or vehicle performance metrics, this display can help streamline operations for fleet managers. In warehouses, it aids in inventory management, order picking, and shipment tracking, ensuring that teams are always up to date with the most current information. Its compact size and flexible mounting options make it an excellent fit for mobile units or on-the-go applications, where space is limited, and real-time access to crucial data is needed. Whether used in a truck cabin for delivery monitoring or on the floor of a distribution center, this monitor enables improved decision-making and enhanced operational efficiency.
