Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E156WLSWFS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

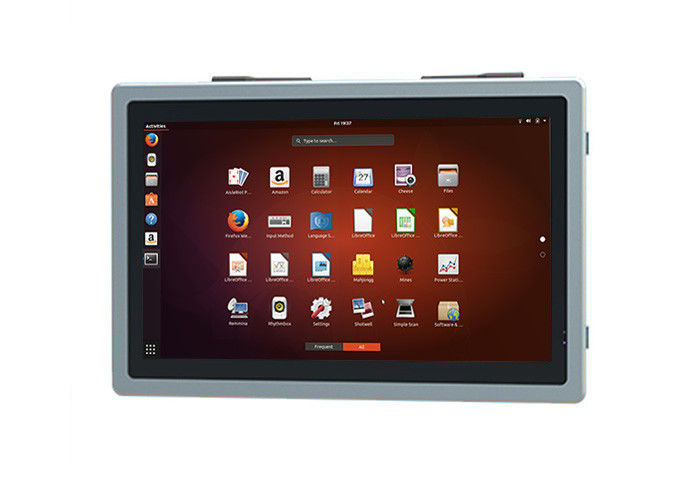

The 15.6-inch compact Linux-based display is an excellent solution for factory dashboards and logistics monitoring systems that require clear, real-time data visualization in space-constrained environments. With its Full HD resolution (1920 x 1080) and a wide viewing angle of 89°, this monitor ensures high-definition display clarity even in bustling industrial or warehouse settings. Its 250cd/m² brightness is sufficient for both indoor and semi-lit environments, offering a sharp and easily readable display of vital metrics, such as machine performance, inventory status, or workflow efficiency. The compact size and versatile connectivity options—such as Ethernet and Wi-Fi integration—make it ideal for industries that need to stay connected and agile in fast-paced production lines or logistics hubs.
LCD Panel Parameters | Screen Size | 15.6 Inch | ||
Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7M , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 700 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 30ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ω | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 403.9 X 263.9X 56.7mm. | ||
Net Weight | 5 Kilogram | |||
Package Size | 47 X 33 X 17Centimeter | |||
Gross Package Weight per Unit | 5.5 Kilogram |
In addition to its application in factory dashboards, this 15.6-inch screen proves indispensable in fleet management and warehouse tracking systems. Equipped with high-quality integrated graphics and Wi-Fi capabilities, it can serve as an effective tool for monitoring vehicle performance, GPS tracking, or real-time delivery updates. In warehouses, this screen is useful for displaying inventory management systems, order fulfillment progress, and even automated storage data. Its compatibility with various media formats—including video, images, and audio files—further enhances its adaptability, allowing it to display relevant multimedia content such as alert sounds for system warnings or visual reports during high-volume operations.
The 15.6-inch Linux display is also perfect for custom-built kiosks and interactive data terminals used in industrial settings. Whether deployed in a control room for monitoring system health, at production stations for task management, or in customer-facing applications for providing real-time product information, this monitor offers versatility and ease of use. With high-definition clarity and low power consumption, it is suitable for round-the-clock operation in environments such as factories, warehouses, or distribution centers, where constant data visibility is crucial for optimal workflow and performance. Its stereo audio system ensures that users are also notified with high-volume alerts or status updates, further improving operational efficiency.
