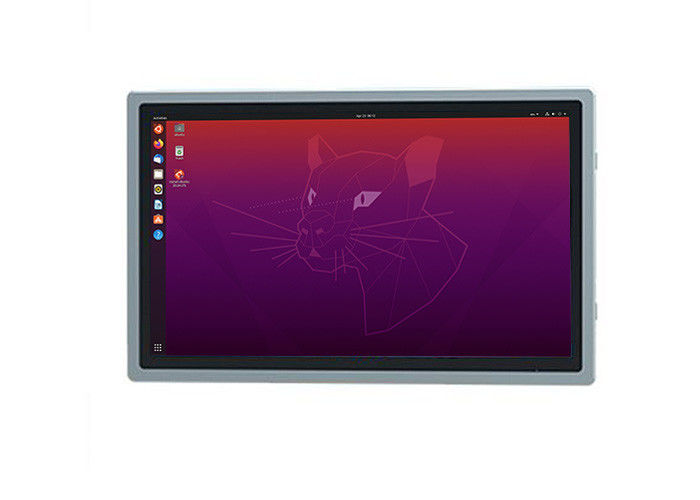

21.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards

21.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards

  • 21.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards
  • 21.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards
21.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E215WLSWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 21.5 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

21.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards

The 21.5-inch Linux monitor is perfectly suited for smart city applications, where real-time data monitoring and management are essential for maintaining urban infrastructure. This high-resolution display can be used for traffic control systems, where operators can monitor vehicle flow, traffic congestion, and incident reporting in real time. The combination of its large size, sharp resolution, and wide viewing angles ensures that city officials can efficiently view detailed maps and traffic patterns from various distances, making decision-making easier and faster. Additionally, this monitor can be integrated into smart parking systems, helping drivers find available spots, while sending real-time information back to the central system for optimized space utilization.

LCD Panel ParametersScreen Size21.5 Inch
Display Area476.5 mm (Height) X 268 mm (Width)
Aspect Ratio16 : 9
LCD TypeTFT-LCD Monitor
Maximum Resolution1920 X 1080
Display Color16.7m
Brightness250cd/m²
Contrast Ratio3000 : 1
Viewing Angle (Up/Down/Left/Right)89/89/89/89 (Type)(CR≥10)
Response Time6.5ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 45 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions535.9 X 332.5 X 56.7 mm.
Net Weight7 Kilogram
Package Size62 X 42 X 15Centimeter
Gross Package Weight per Unit7.5 Kilogram


In industrial settings, this 21.5-inch display is an excellent choice for control panels, where it can display real-time data related to production lines, machine diagnostics, and operational efficiency. Its fast response time and high contrast ratio enable users to interact with complex visual data, ensuring accurate decision-making in environments where precision is crucial. Additionally, this monitor can serve as a workstation dashboard, providing an interface for employees to interact with software applications that track inventory management, asset tracking, and equipment monitoring. Whether used for safety monitoring or energy consumption tracking, the monitor’s robust design and integrated processing power allow it to withstand demanding environments, such as manufacturing floors and warehouses.

21.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards 021.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards 121.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards 221.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards 321.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards 421.5-Inch Large Linux Monitor for Smart City Applications and Industrial Dashboards 5
The 21.5-inch Linux monitor also plays a critical role in interactive digital signage and advertising applications. Its wide aspect ratio and high-definition display make it ideal for use in shopping malls, airports, and train stations, where it can showcase dynamic content like product advertisements, news updates, and entertainment videos. Its stereo speakers provide clear audio for promotional videos, enhancing customer experience. Additionally, the monitor can be used in interactive kiosks, enabling touchscreen navigation for users to find directions, check schedules, or access information. With Wi-Fi integration and the ability to connect to networked systems, content can be updated remotely, making this monitor a versatile solution for digital advertising and public information displays. Its energy efficiency also makes it well-suited for continuous, long-term operation in public spaces.
