15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-E156WPBWFS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight cases are optional
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	15.6 Inch	Aspect Ratio:	16:9
Brightness:	400 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

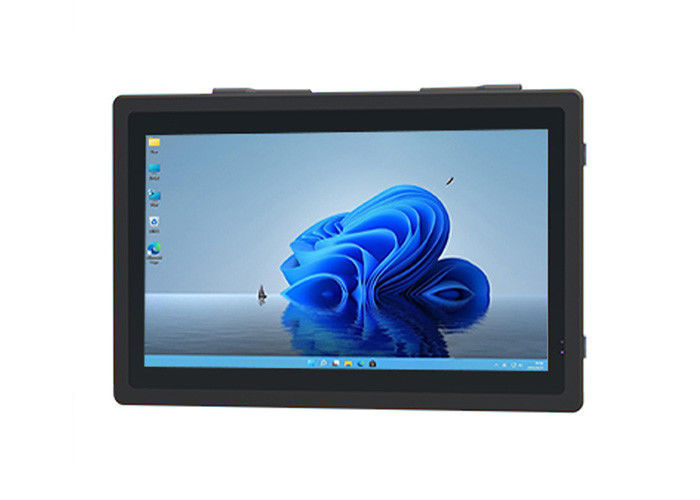

15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems

The 15.6-inch Windows display is an ideal solution for factory dashboards and industrial control systems, providing operators with the tools to monitor and manage production processes in real-time. Featuring a high-definition resolution of 1920x1080 and a 16:9 aspect ratio, it ensures that detailed data and real-time metrics are clearly visible, whether displaying production line statistics, machine performance, or quality control data. With integrated Wi-Fi, it can connect to local networks for seamless communication between workstations and the central control system, ensuring that updates are continuously relayed. This slim monitor can be mounted on walls or placed on workbenches, offering flexibility in positioning without occupying much space, making it perfect for factories and warehouses with limited room.

LCD Panel Parameters	Screen Size	15.6 Inch
	Display Area	344.16 mm.(Height) X 193.59(Width)mm.
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1920 X 1080
	Display Color	16.7M , 72% NTSC
	Brightness	250cd/m²
	Contrast Ratio	700 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	30ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
Audio parameters	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ω
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Internal computer configuration (Choose one of two)	CPU	Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz	Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
	Graphics Card	Integrated Graphics Card Intel® HD 4600	Integrated Graphics Card Intel® HD 530
	RAM	4GB	8GB
	Storage Memory Capacity	128GB	256GB
	OS	Win10 or win11 Optional	Win10 or win11 Optional
	Wi-Fi Built-in	Speed 150Mbps 802.11n wifi Integrated	Speed 150Mbps 802.11n wifi Integrated
Media Format	Video Format	wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
	Audio Format	MP3, WMA
	Photo Format	BMP, JPEG, PNG, GIF etc.
Onboard Interface	Network port	RJ45 X 1, 10M/100M Adjustable Ethernet
	HDMI	1
	USB	4
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	403.9 X 263.9X 56.7mm.
	Net Weight	5 Kilogram
	Package Size	47 X 33 X 17Centimeter
	Gross Package Weight per Unit	5.5 Kilogram

In security systems, the 15.6-inch monitor serves as an excellent tool for surveillance operations, displaying live video feeds from security cameras with great clarity. Its high contrast ratio and wide viewing angles ensure that security teams can easily monitor feeds from various camera angles, whether from control rooms or on-site installations. The display's stereo audio system can be used for alert sounds, further enhancing the functionality of the security system by adding auditory cues to visual data. This display is ideal for centralized monitoring stations or as part of a remote security interface, enabling real-time responses to any disturbances, ensuring a swift reaction to any security threats.

15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems 0

15.6-Inch Slim Windows Display for Factory Dashboards and Security Systems 5

Additionally, the 15.6-inch display is well-suited for use in kiosks and customer-facing applications within industrial settings. Whether used as an interactive information station, time clock, or access control terminal, its compact design and touchscreen capabilities provide users with a seamless experience. The Intel i5 processors and high RAM capacity ensure that the monitor can run sophisticated applications like scheduling software or custom interfaces for access control systems. Moreover, its robust construction and long lifespan make it a reliable option for environments with high operational demands, such as manufacturing floors or logistics hubs, where durability and consistent performance are key.
