Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E190WPBWFS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 19.0 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

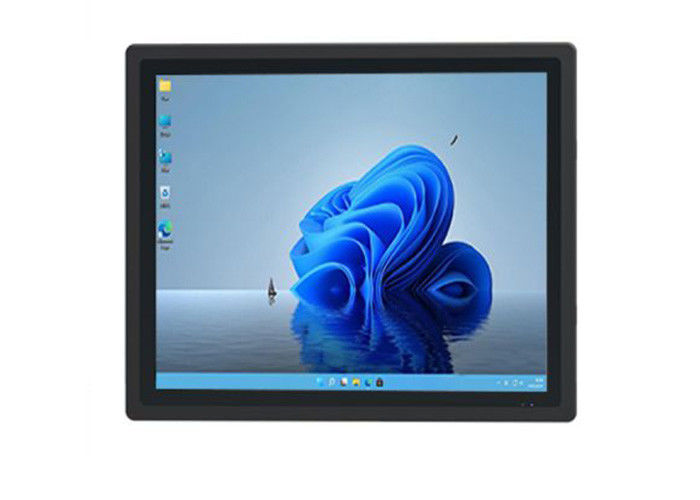

The 19-inch Windows-based display offers an excellent solution for access control systems in high-security environments such as government buildings, corporate offices, and hospitals. With its high resolution (1280 x 1024) and crisp color accuracy, this monitor provides clear, real-time visual feedback of personnel and visitor identification processes. Integrated with touchscreen capabilities or connected to various biometric systems, it is perfect for managing access points and door entry systems. Additionally, the powerful Intel processor and integrated Wi-Fi allow seamless integration with cloud-based security platforms, ensuring that security personnel can easily update and manage access logs, monitor live footage, and control security settings from a centralized location.
LCD Panel Parameters | Screen Size | 19 Inch | ||
Display Area | 376.32 mm.(Height) X 301.06(Width)mm. | |||
Aspect Ratio | 4 : 3 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1280 X 1024 | |||
Display Color | 16.7m , 73% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 14ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 436.5 X 364.5 X 56.7 mm. | ||
Net Weight | 6.5 Kilogram | |||
Package Size | 52 X 44 X 15 Centimeter | |||
Gross Package Weight per Unit | 7 Kilogram |
In medical applications, the 19-inch precision display excels in environments like hospitals, clinics, and medical research labs. The high color accuracy and large viewing angles make it ideal for displaying medical imaging, patient data, and diagnostic results. Whether used in radiology rooms to view X-rays, CT scans, or MRI images, or as part of a patient monitoring station, this screen ensures that medical professionals have precise, real-time access to critical health information. Its long lifespan and energy-efficient design make it an ideal choice for continuous medical operations. Furthermore, the touch-screen interface can be used for patient record access and real-time health monitoring, enhancing workflows and improving the quality of care.
This monitor also serves as a vital component in interactive self-service terminals, such as those found in hospitals, airports, or public offices. With its versatile connectivity options, including USB and HDMI, the screen can be used for information kiosks, ticketing machines, or digital signage systems. The sturdy build and wide operating temperature range make it reliable in various public environments, from wayfinding to queue management systems. Whether providing public information, helping patients check-in for appointments, or acting as a self-service terminal for transportation or banking, this display ensures clear and consistent delivery of information in both commercial and critical settings.
