Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-E215WPBWFS |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 21.5 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

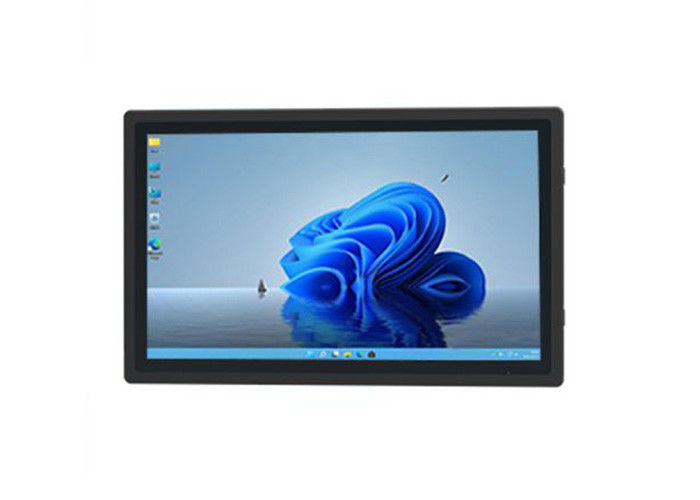

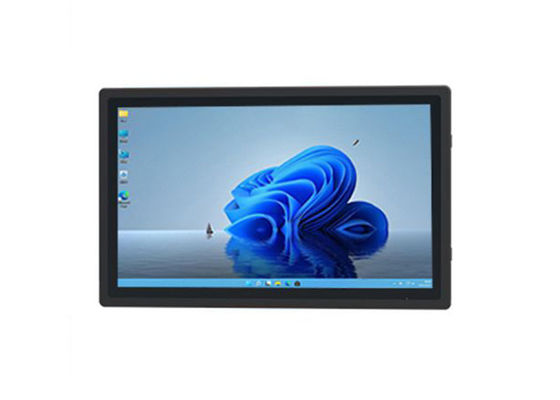

The 21.5-inch high-definition monitor is a perfect solution for smart city applications, offering seamless integration in areas such as public transportation systems, traffic management, and city-wide information hubs. With its full HD resolution and wide viewing angles, this display ensures that critical data is easily visible across a variety of environments. Whether used for real-time traffic updates, public announcements, or city event schedules, its high contrast ratio ensures clarity even under direct sunlight or in well-lit public spaces. In smart city infrastructure, it can be incorporated into intelligent transportation systems (ITS) for dynamic signage that displays bus schedules, traffic conditions, and emergency alerts to keep residents informed and safe. Additionally, its Wi-Fi and network port options provide a flexible connection to centralized control systems, enabling quick updates across the city.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.5 mm (Height) X 268 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 535.9 X 332.5 X 56.7 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 62 X 42 X 15Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
In the field of digital signage, this monitor excels by delivering high-quality, engaging visuals for both indoor and outdoor applications. Whether used in malls, airports, restaurants, or retail environments, its HD resolution and vivid color reproduction make it an ideal choice for creating immersive and attention-grabbing advertising displays. The monitor’s ability to display a variety of media formats, such as videos, images, and interactive content, gives businesses the flexibility to attract customers in dynamic ways. Its integrated speakers further enhance its appeal in advertising, allowing for a fully immersive experience that integrates both visual and audio elements for maximum impact. Additionally, the low power consumption and energy-efficient design make it an eco-friendly choice for continuous operation, reducing long-term operational costs for businesses.
This 21.5-inch display also has applications in interactive kiosks, self-service terminals, and wayfinding solutions in places like shopping centers, hospitals, and stadiums. The wide screen real estate and high-definition clarity make it easy for users to interact with intuitive touch interfaces, access information, or navigate their way through complex environments. In hospitality settings, it can be used for digital check-ins or customer service terminals, improving the user experience with an easy-to-navigate interface. Whether providing directions, displaying event schedules, or offering service information, this monitor’s wide viewing angles ensure that users can see the content from any position, while its integrated Wi-Fi allows for real-time updates and management.
